Hi all,

Finished the engine cradle for the floor jack.  I think Bryan allowed attachements for the list.

Let see if this works.

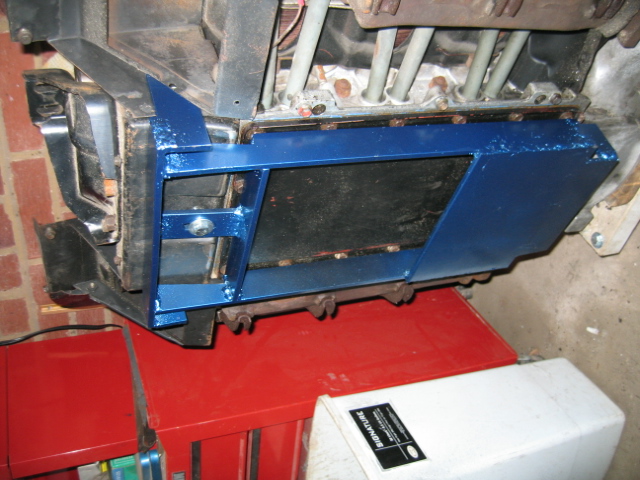

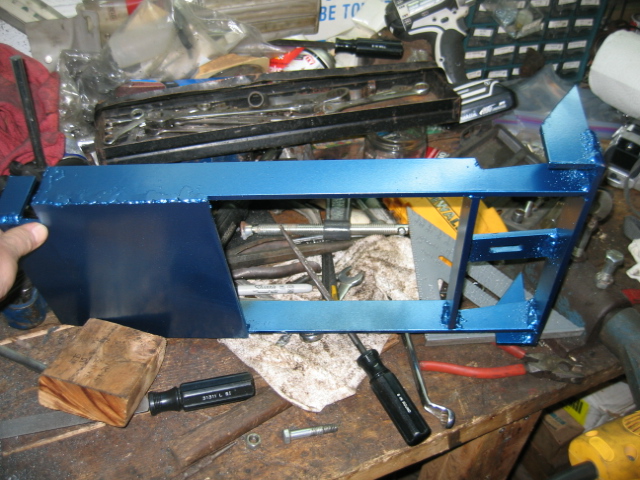

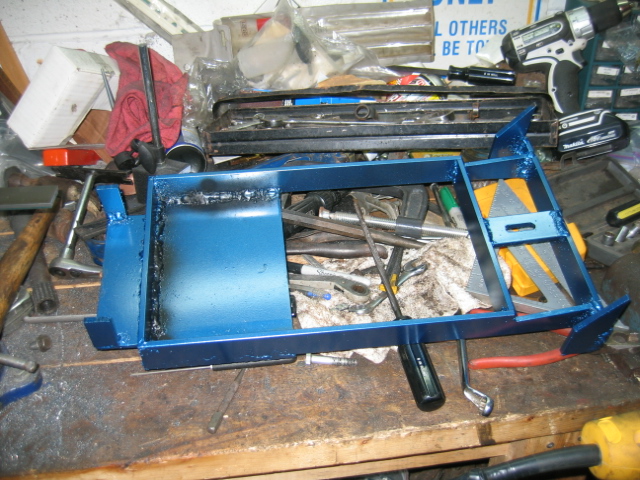

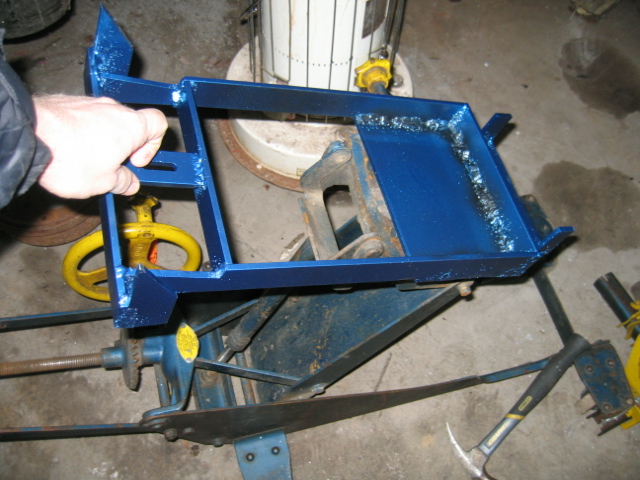

The wedges at the rear catch the air door area and the tabs on the front catch the bellhousing.  Bolts to the back of the engine...now you know what that bolt is really for!   I used pics of a factory cradle as a starting point.

Need to pull an engine now...hope the floor jack goes up high enough.

Darrin
