[SCG] front spoiler 66/69

[Mark Corbin]

All,

At this point, I think we need to add the SCG to the list. It certainly wouldn't hurt. I'm attaching the pics and hoping they go thru.

-Mark


----- Original Message -----
From: The Vair Shop
To: Kent Sullivan;Paul & Sandy Steinberg;Duane Wentlandt;Bill Hubbell
Cc: Stan East; Mark Corbin; Mike McKeel; Duanne Luckow; Mark Ellis
Sent: 4/3/2008 5:22:41 PM
Subject: Re: front spoiler 66/69


hi guys
 mark did you say wanted to head up the research on this?  it's been a month now, i haven't heard anything other than the few responses i got when i first posted this. cal would like to proceed.
lc
----- Original Message -----
From: Kent Sullivan
To: Paul & Sandy Steinberg ; Duane Wentlandt ; Bill Hubbell
Cc: Stan East ; Mark Corbin ; Mike McKeel ; Duanne Luckow ; 'Larry Claypool' ; 'Mark Ellis'
Sent: Tuesday, March 04, 2008 1:28 PM
Subject: FW: front spoiler 66/69


Paul and Duane, maybe you can help? Bill, FYI…

Should we throw this out to the entire SCG list?

--Kent

From: The Vair Shop [mailto:vairshop at sbcglobal.net]
Sent: Tuesday, March 04, 2008 8:09 AM
To: Kent Sullivan; 'Stan East'; 'Mark Corbin'; 'Mike McKeel'; 'Duanne Luckow'
Cc: 'Mark Ellis'
Subject: front spoiler 66/69

hi all
     cal clark contacted me regarding the front stock valance , or spoiler if you prefer, on the 66/up cars. he is going to look into reproducing them, but wants to get it 'right' the first time around (unlike the deck lid insulation).
he does have a nos piece to work with, however this nos piece and the ones on some cars are not all the same.
     there appear to be 2 different textures on the outer face of the valance- one is a grain that is pretty pronounced like that of the grain on the 60/64 monza seat vinyl.  the other grain is not as pronounced, being more like the pattern on 65/67 monza/corsa seat vinyl.
     the other difference is the way the bottom of the valance is molded- one style has a simple lazy L shape towards the rear of the car, the other style has the bottom of the valance shaped in a slight offset that does not go towars the rear, but instead  downward.
i had 2 examples in the shop today.

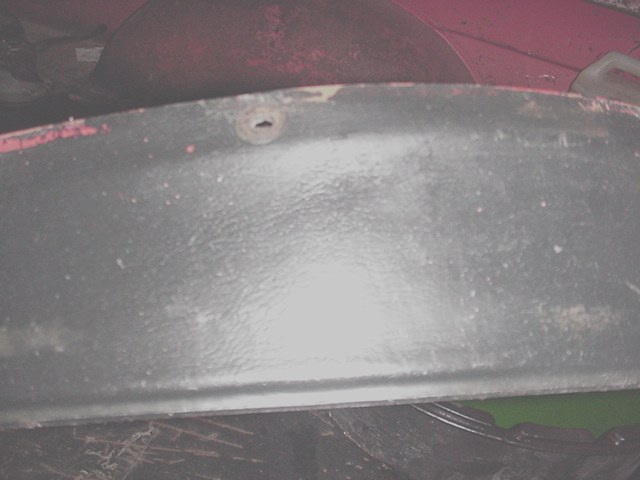

picture 902 is a valance i had on the shelf; year unknown; it has the offset bottom and the shallow texture.

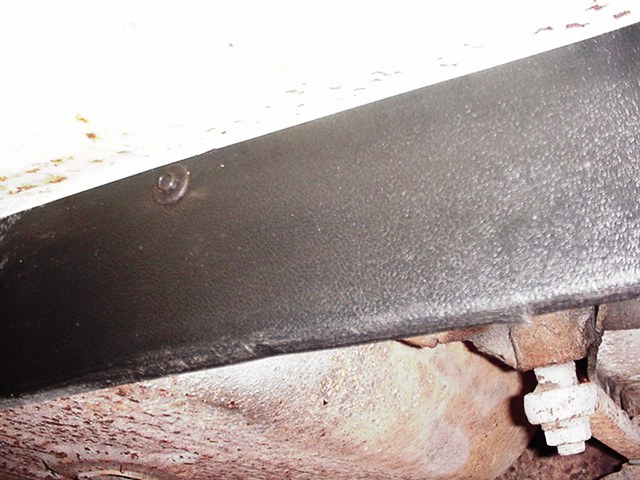

picture 906 is on a 66 monza, but i don't know the car's history to verify it is original to that car. this one has the lazy L shape and the deep texture.

 so that brings up 2 questions.
1.  what years used which style?
2. does the texture change go hand in hand with the shape differences , or could there be combinations of texture and shape?

i think this something that the SCG could help determine.
anyone willing to take charge of an investingation?

once we make a conclusion, i will post cal with our findings. he does not need to be posted on all of our investigation process.
best regards
lc
-------------- next part --------------
A non-text attachment was scrubbed...
Name: MVC-906F.JPG
Type: image/jpeg
Size: 74673 bytes
Desc: MVC-906F.JPG
Url : http://www.vv.corvair.org/pipermail/scg-list/attachments/20080403/350a5376/attachment-0002.jpe
-------------- next part --------------
A non-text attachment was scrubbed...
Name: MVC-902F.JPG
Type: image/jpeg
Size: 47564 bytes
Desc: MVC-902F.JPG
Url : http://www.vv.corvair.org/pipermail/scg-list/attachments/20080403/350a5376/attachment-0003.jpe
