[SCG] Early Convertible quarter window seal

[William Hubbell]

Seeking information:

This seal (or Flap) attaches to the REAR upper end of the quarter window channel (as opposed to the seal at the FRONT end - which Clark’s sells as part # C9942).  It is hard to see unless you lower the top.  There are right and left versions.

All that was left of these seals on the Glenn car were the metal inserts, but I took photos of another car at last year’s convention - it was also a 1964.

I would like to see this part reproduced, and Cal Clark has expressed interest, but to do so, we need a pair of them in good condition and some additional information: were they used on all Early Model Convertibles (‘62-‘64) or just certain years?

If you own or have access to an early model Corvair convertible, please check for these seals and let me know your findings.

If you happen to have a matched set of these and would be willing to lend them out as templates for reproduction, please let me know.

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 382479 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/scg-list/attachments/20200618/dd110005/attachment-0005.png>
-------------- next part --------------

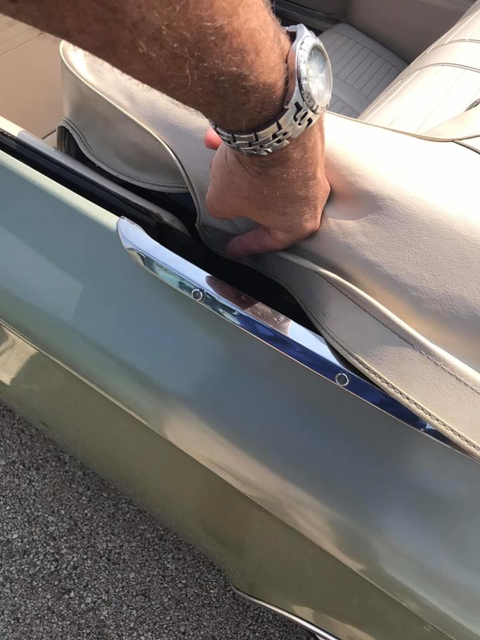

I’m pointing to the approximate location of the seal

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 383900 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/scg-list/attachments/20200618/dd110005/attachment-0006.png>
-------------- next part --------------

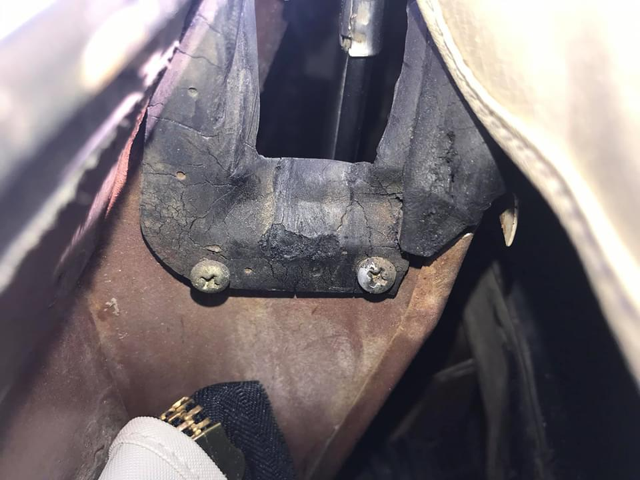

This is the seal - rubber over two steel inserts.  It attaches to the REAR of the quarter window upper channel

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 478135 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/scg-list/attachments/20200618/dd110005/attachment-0007.png>
-------------- next part --------------

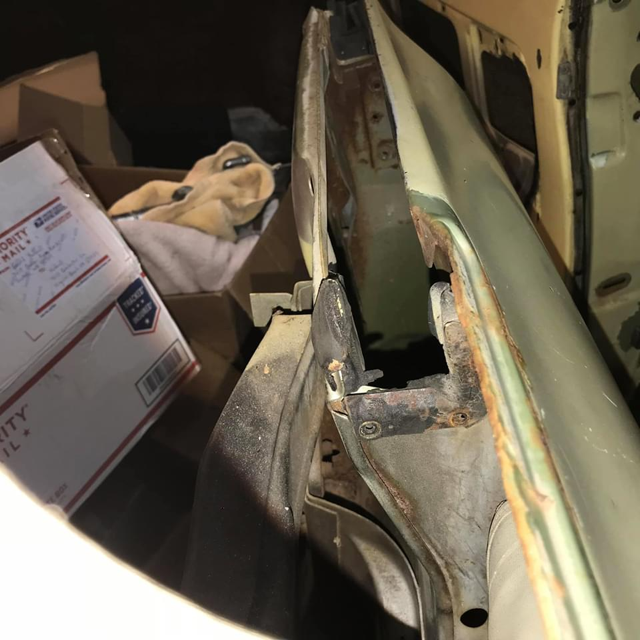

This shows the metal inserts attached to the body (Glenn Corvair tear down)

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 408998 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/scg-list/attachments/20200618/dd110005/attachment-0008.png>
-------------- next part --------------

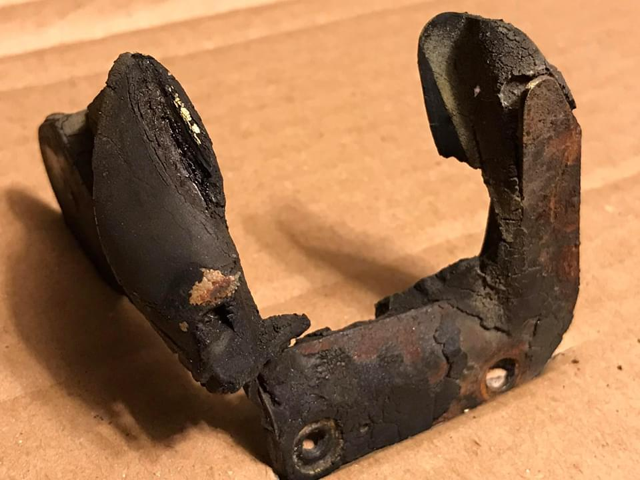

What’s left of one of the Glenn Corvair seals

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 360241 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/scg-list/attachments/20200618/dd110005/attachment-0009.png>
-------------- next part --------------

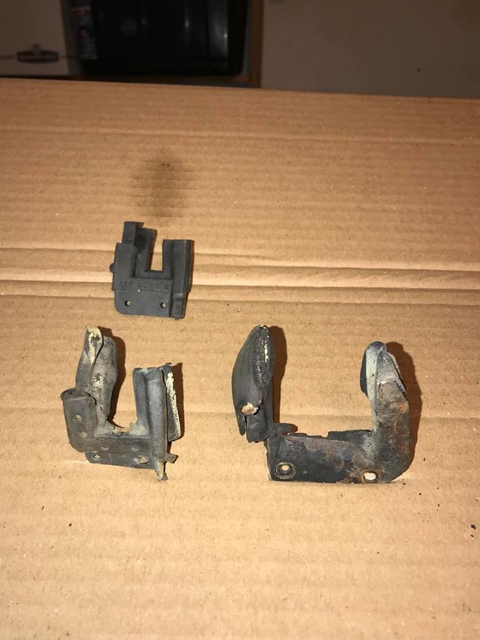

Comparing the FRONT seal on left with the REAR seal on right.  The front seal is shown as the reproduced version a(upper) and original (lower).  The reproduced FRONT seal is sold as Clark’s part #C9942.

Bill
