Mike. That is good work on the strut lengths. I see some of the other guys
are giving us some good advice as well.
I have squeezed the outboard locators in between the shock and spring. I
haven't finished the cradle yet for the tranny so I can still use the help
in the best place to locate the inboard end. I have 16 an 14" struts in
steel. Wish I had of known about Day Motor Sports.

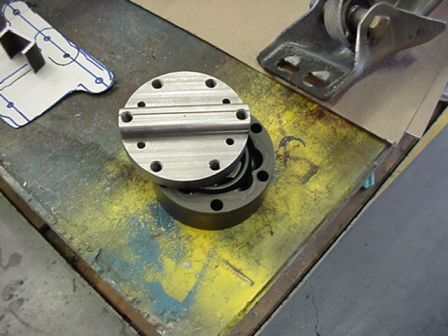

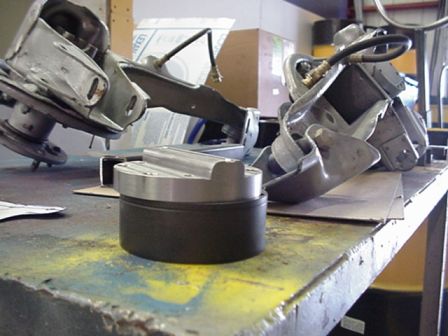

I have tried to attach two pictures of my adaptors. Not sure if that is
possible on this list.
I was concerned about the torque as well so I incorporated a lug to fit
where the universal would be. I think that these should be stronger than the
universals.
Tim

-----Original Message-----
From: v8vairs-bounces at corvair.org [mailto:v8vairs-bounces at corvair.org] On
Behalf Of Michael Svinth
Sent: Thursday, May 26, 2011 11:37 AM
To: v8vairs at corvair.org
Subject: Re: [V8Vairs] upper strut on LM rear suspension


Tim,
Innovation loves company so I'm glad we made this connection.
 I was having a hard time understanding this suspension stuff so I built a
scale model of the rear last week so I could play with different
modifications and measure the results.  What I found was that with a
SLA(short/long arm)setup, I got modest neg camber gain on the bump but also
got neg camber gain on the droop(not what I want).  When I raised the lower
arm inside pivot point or lowered the upper arm inside pivot point, I got
neg camber gain on the bump and positive camber gain on the droop.  I am
using 14" arms.  The combination that I liked the best was 1" up on the
lower and 1" down on the upper.  The result was about 2-3 degrees gain on
both the bump and droop in 3" of travel.
I've not done this before so if I am missing something, I would appreciate
someone pointing it out.
How is your 930cv to universal yoke adapter designed?  I took mine to a
driveline place here in Petaluma and he was not in favor of the four bolts
in the yoke handling the load.
Do you have a good source on the control arms made out of 1" tubing with
helical(swivel) adjustable ends?
I'll get pics when I am a little further along.
Mike
> From: tbarrie at meritprecision.com
> To: v8vairs at corvair.org
> Date: Thu, 12 May 2011 15:55:09 -0400
> Subject: Re: [V8Vairs] upper strut on LM rear suspension
>
> My work computer is having trouble communicating with a few specific web
> providers. Please forgive me if this shows up several times.
>
>
> Mike, I am in the process of converting from a Kelmark conversion to a
> Porsche 915 and going through what you are with upper struts.
> I have welded a 2 by 2 tower to the rear wheel carrier between the spring
> and the shock. I have built a carrier to mount the trans to which is
> supported by the old Kelmark cross member at the rear and tied into the
body
> structure below the package shelf vertically. It has the inboard pickups
for
> the upper and lower tie bars.
> I have 16" tie bars on the bottom and 14" uppers to get the camber gain. I
> just measured some pictures of independent rear ends and that appears to
be
> the rough ratio. Nothing scientific so I would appreciate any feedback on
> that.
> I am using 930 CV's on each end of the axles. I have a Toolroom with a CNC
> at work so we are making up adapter plates to mount the CV to the corvair
> universal joint carrier.
> And that is where I am at so far. Tim
>
> -----Original Message-----
> From: v8vairs-bounces at corvair.org [mailto:v8vairs-bounces at corvair.org] On
> Behalf Of Michael Svinth
> Sent: Wednesday, May 11, 2011 2:07 PM
> To: v8vairs at corvair.org
> Subject: [V8Vairs] upper strut on LM rear suspension
>
>
> My build is a mid-mounted Subaru 3.3l with a 5 speed transaxle in a '65.
By
> using cv half shafts, I am aware of the need for an upper strut to handle
> the side loads. The transaxle(UN1) does not have suspension mounting
points
> so will have to attach everything to the cage/body member. Could those of
> you that have tackled this problem share your ideas, what your did, what
you
> would do different etc. With the need for neg camber gain, I find this a
> bit confusing.
> Thanks in advance from a newbie
> Mike
