<VV> Dual Brake M/C

[Michael Kovacs]

Mike,

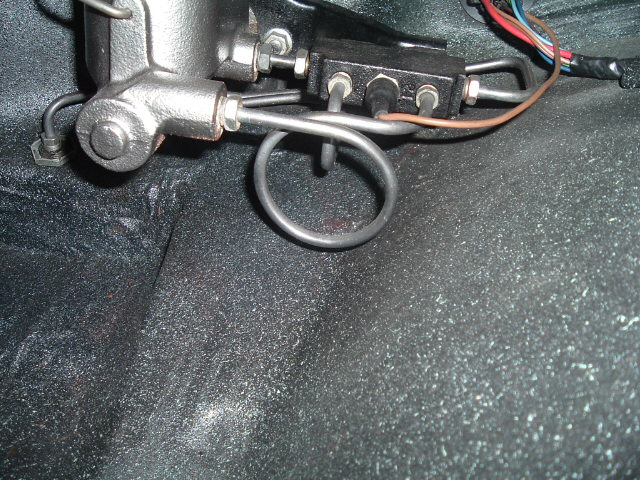

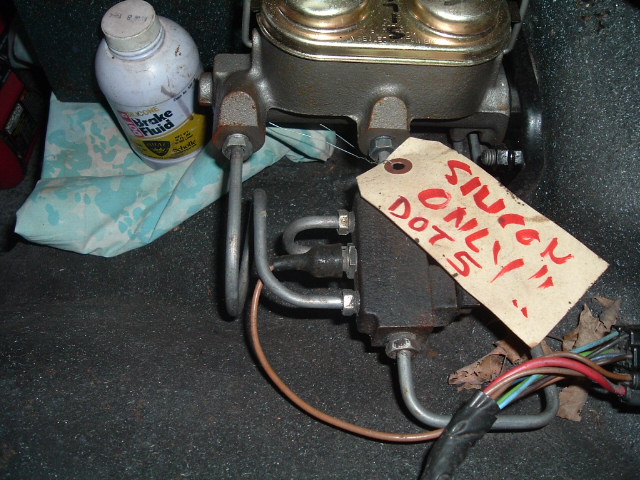

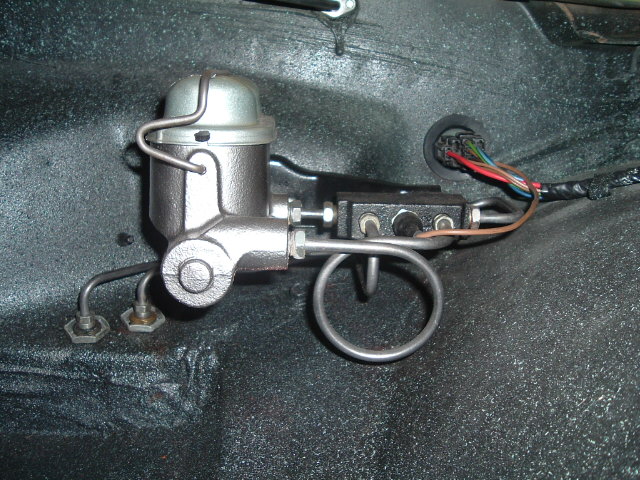

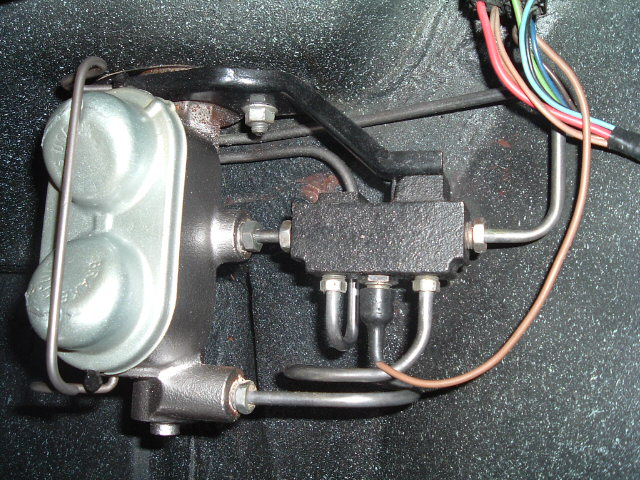

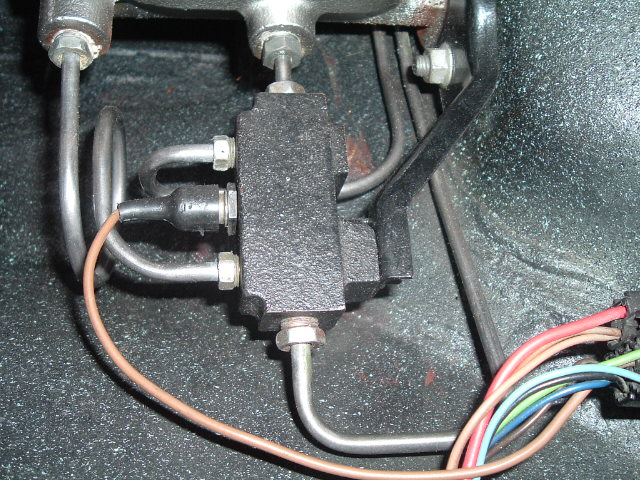

Pictures from 2 of my '69s clearly show it is a switch. Apparently if pressure
is lost at one side, the electrical connection internally is closed, grounding
the light.


Comments?

 MIKE KOVACS




________________________________
From: Michael Kovacs <kovacsmj at sbcglobal.net>



Can do.I think. gimme a day or so.

 MIKE KOVACS




________________________________
From: Test User <vair65 at sisna.com>
To: Michael Kovacs <kovacsmj at sbcglobal.net>
Sent: Wed, December 29, 2010 5:06:17 PM
Subject: Re: <VV> Dual Brake M/C

mike-do you have a picture? thanks-mike mann


On Wed, Dec 29, 2010 at 2:54 PM, Michael Kovacs <kovacsmj at sbcglobal.net> wrote:

Good question. Anybody have a bunch or so hanging around to inspect one? Heck
>even send it to me. I'll do it.
>
>Being an ex manufacturing engineer, I wonder how they made the block. I don t
>want to cut mine open, as that is an expensive bit or research, without having
a
>spare.
>
>The illustrated parts book with pn 3904303 calls it a "switch assy"  in 4.686.
>The book pn 3904303 also calls it a "switch assy-bracket, brake press
>indicator"  in 4.874
>
>I'm betting it is only a switch to tell you you are in deep s**t.
>
> MIKE KOVACS
>
>
>
>----- Original Message ----
>From: "CORSABILL at aol.com" <CORSABILL at aol.com>
>To: VirtualVairs at corvair.org
>Sent: Wed, December 29, 2010 1:41:10 PM
>Subject: <VV> Dual Brake M/C
>
>
>Could someone cut one open to see exactly how it works?
>
>Just my thought, Bill Loftin
>
>
