<VV> Fwd: Oil Pans and Pick-ups

[Steve Lovejoy]

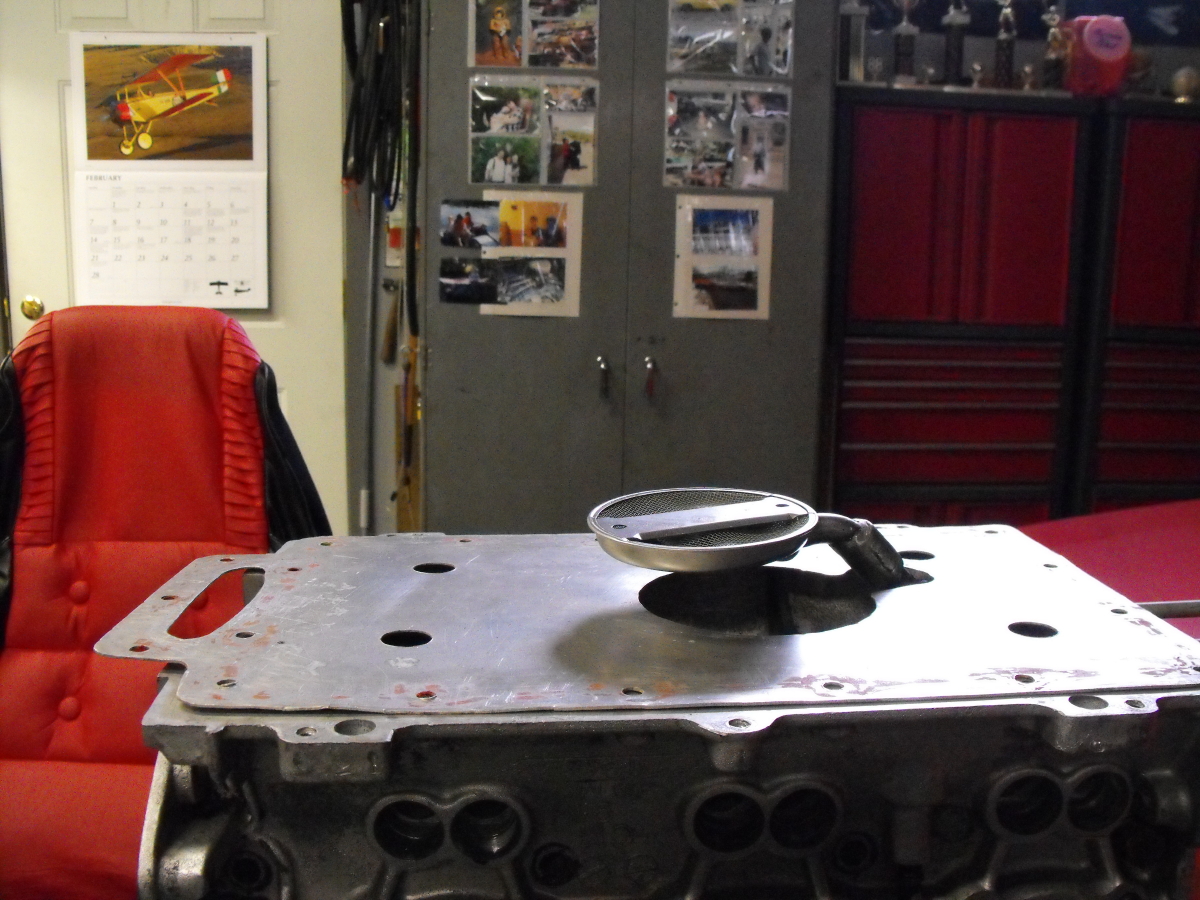

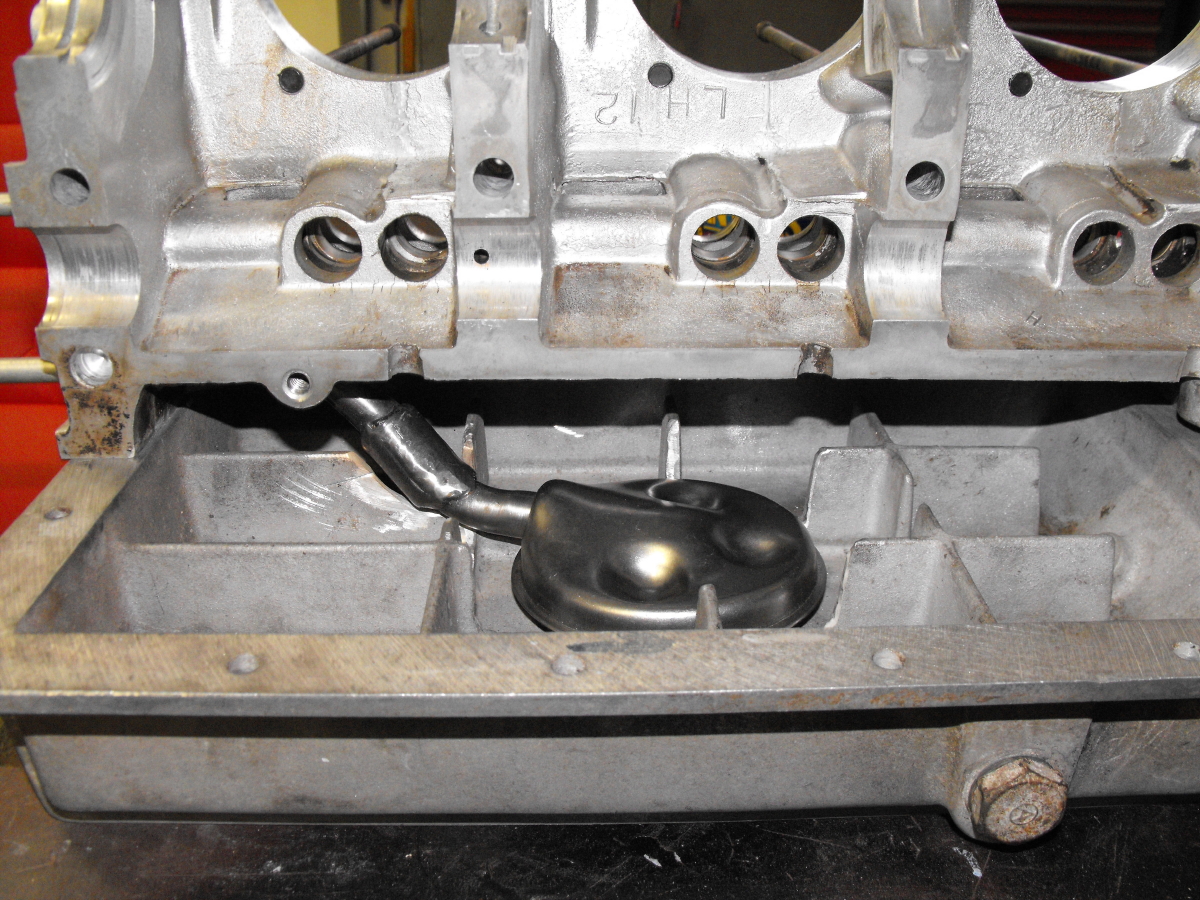

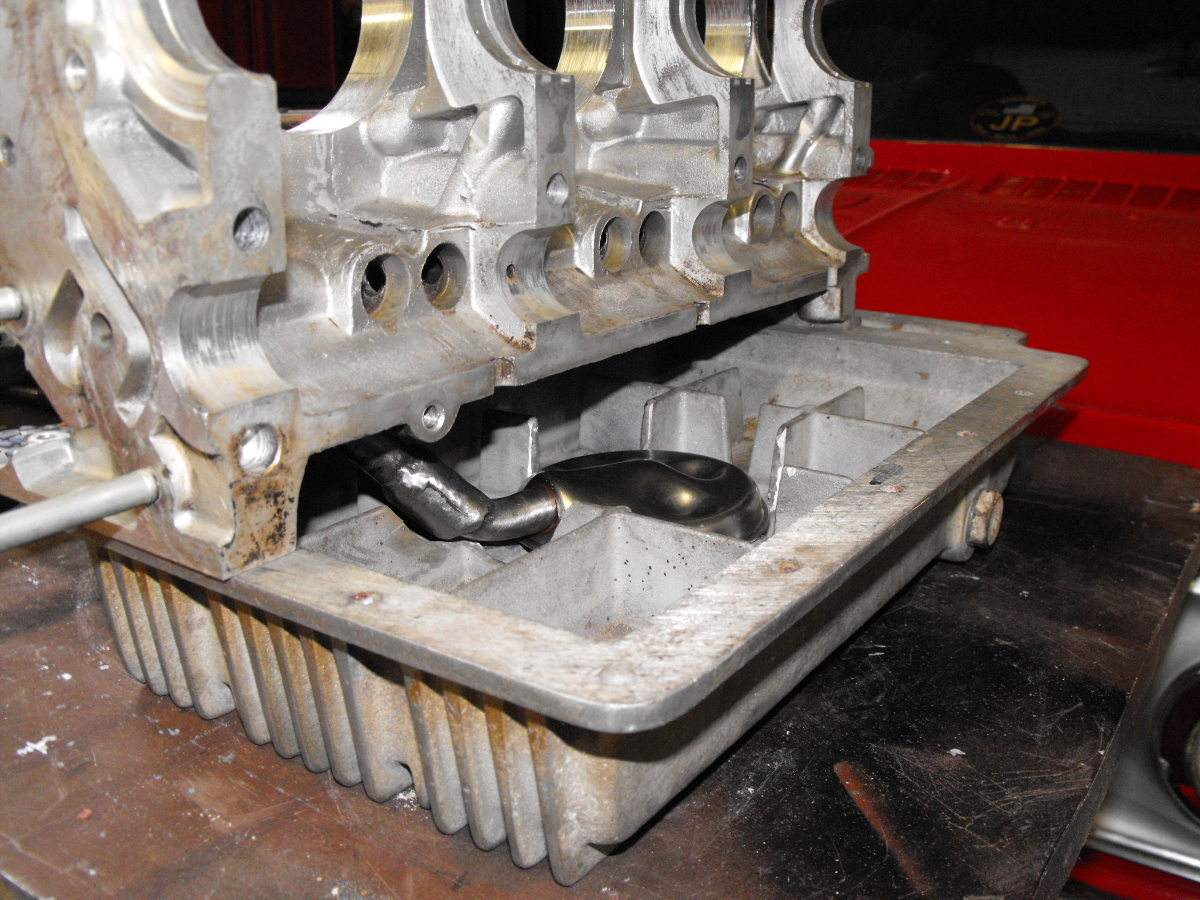

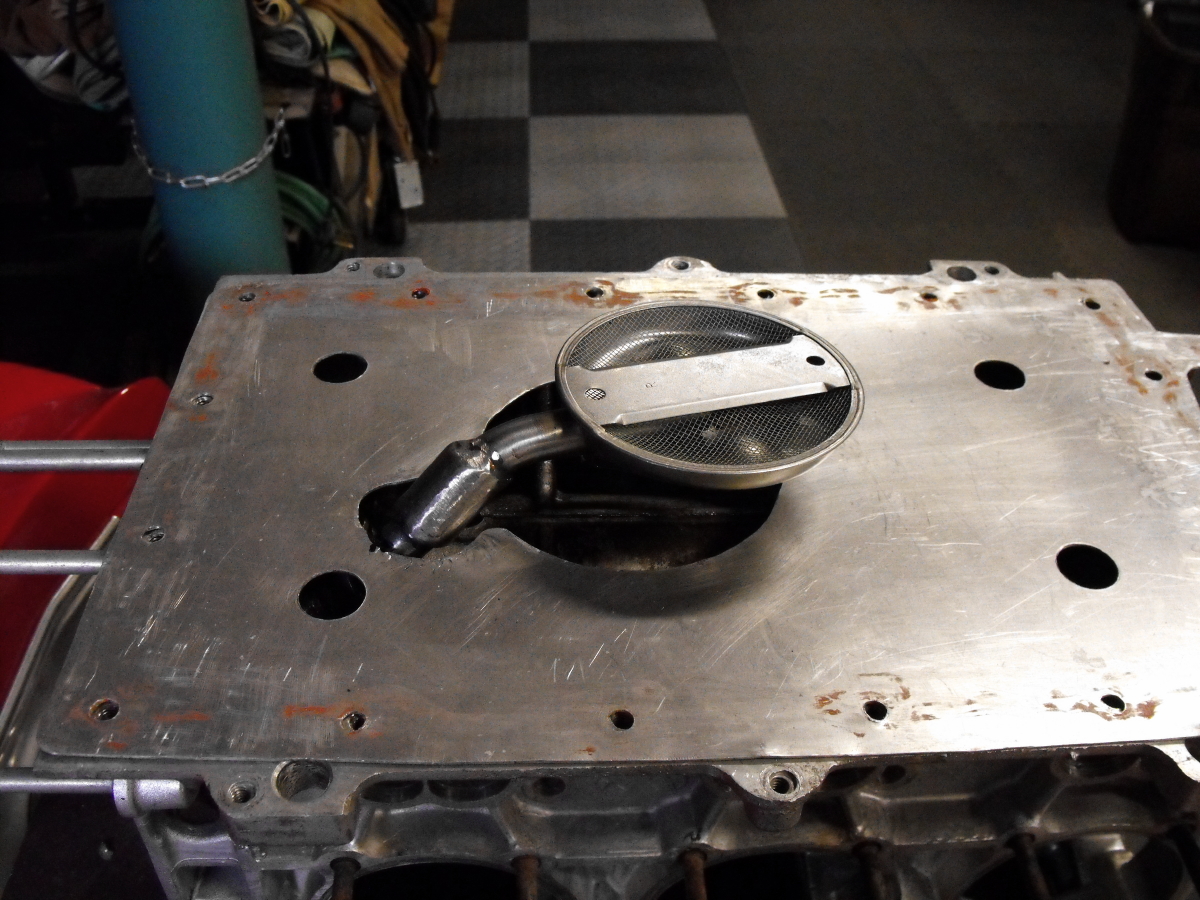

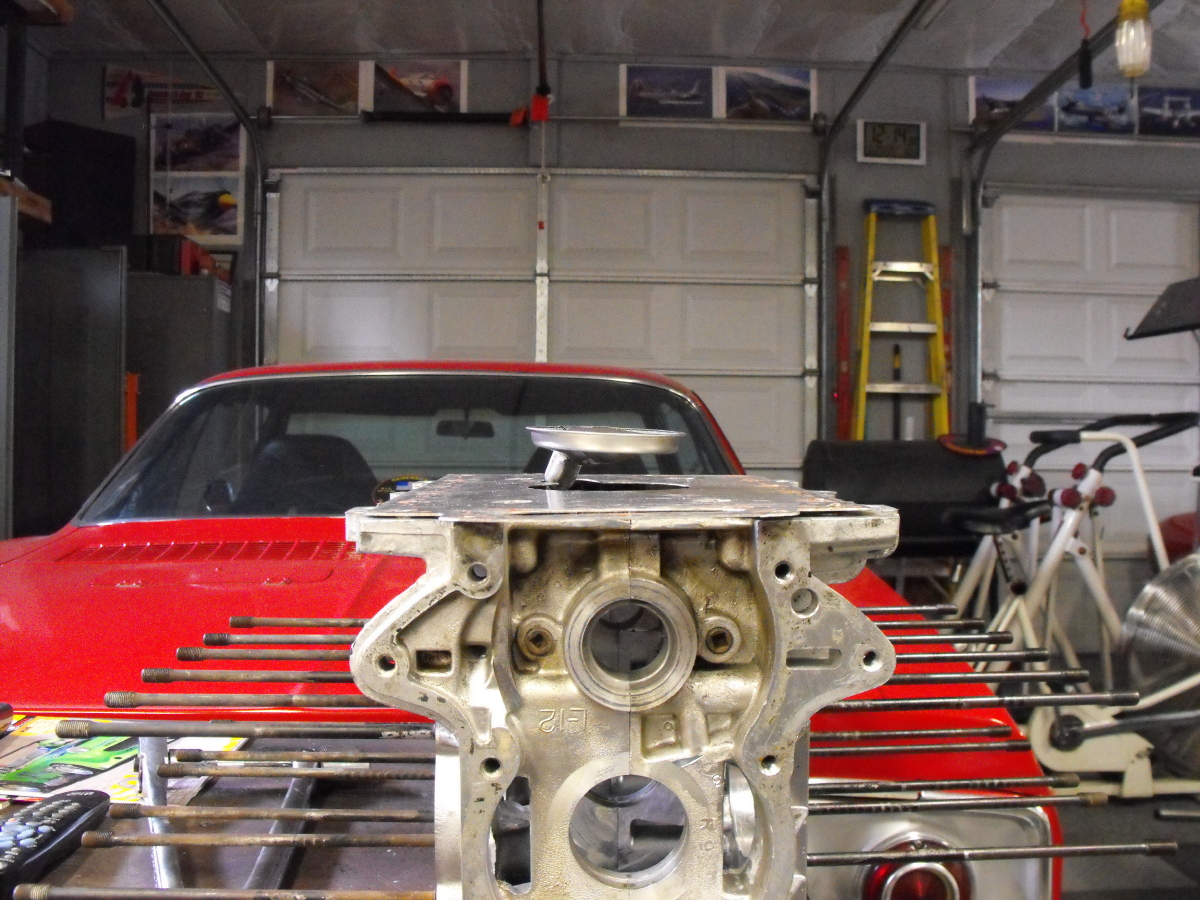

Here are some pictures of how Don Yenko did it. Doug Hargrove and I have
used this system since 1972 with very good results. Yes you have to be
careful on the street so as not to damage the pan. This one is a 3 qt extra
capacity. A two qt. extra capacity can also be used but the 3 qt gives more
oil below the baffle.

Take Care,

Steve
