<VV> FW: 60 Corvair beltline trim width

[Ken Clark]

From: kcvair at hotmail.com
To: jp0181 at yahoo.com
Subject: RE: <VV> 60 Corvair beltline trim width
Date: Tue, 29 Oct 2013 11:39:28 -0400




Justin-  I'll try to explain what I'm doing to get my trim back on.  I don't know if you have any of the plastic holders you can use or not, but I used all I could.(the 1/2" long ones that push in to the slots)  If you don't have any of them you could probably use the ones like I'm making.  I have enough for my car now.  The trim across the hood is the last.  I haven't put it on yet though.

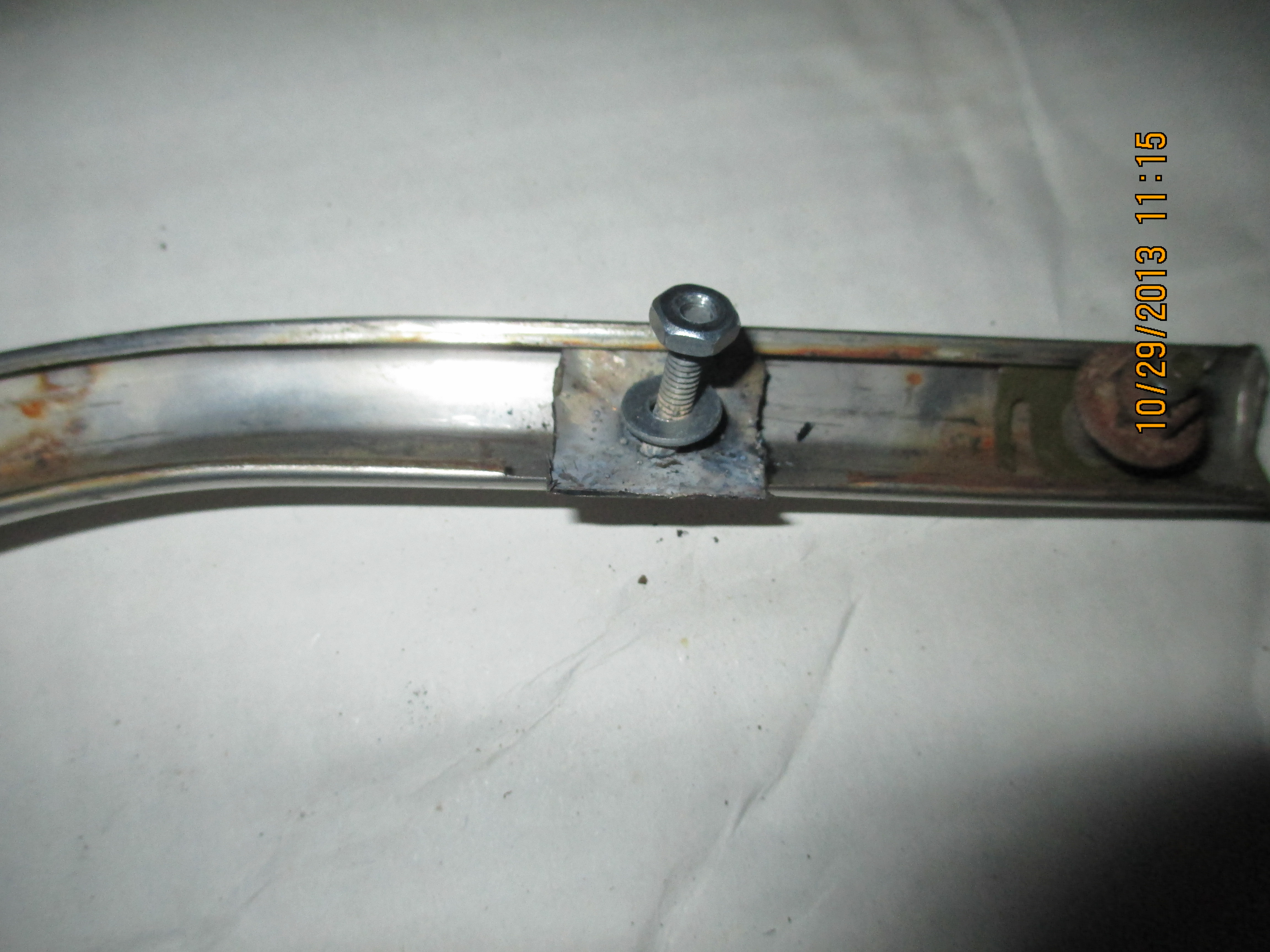

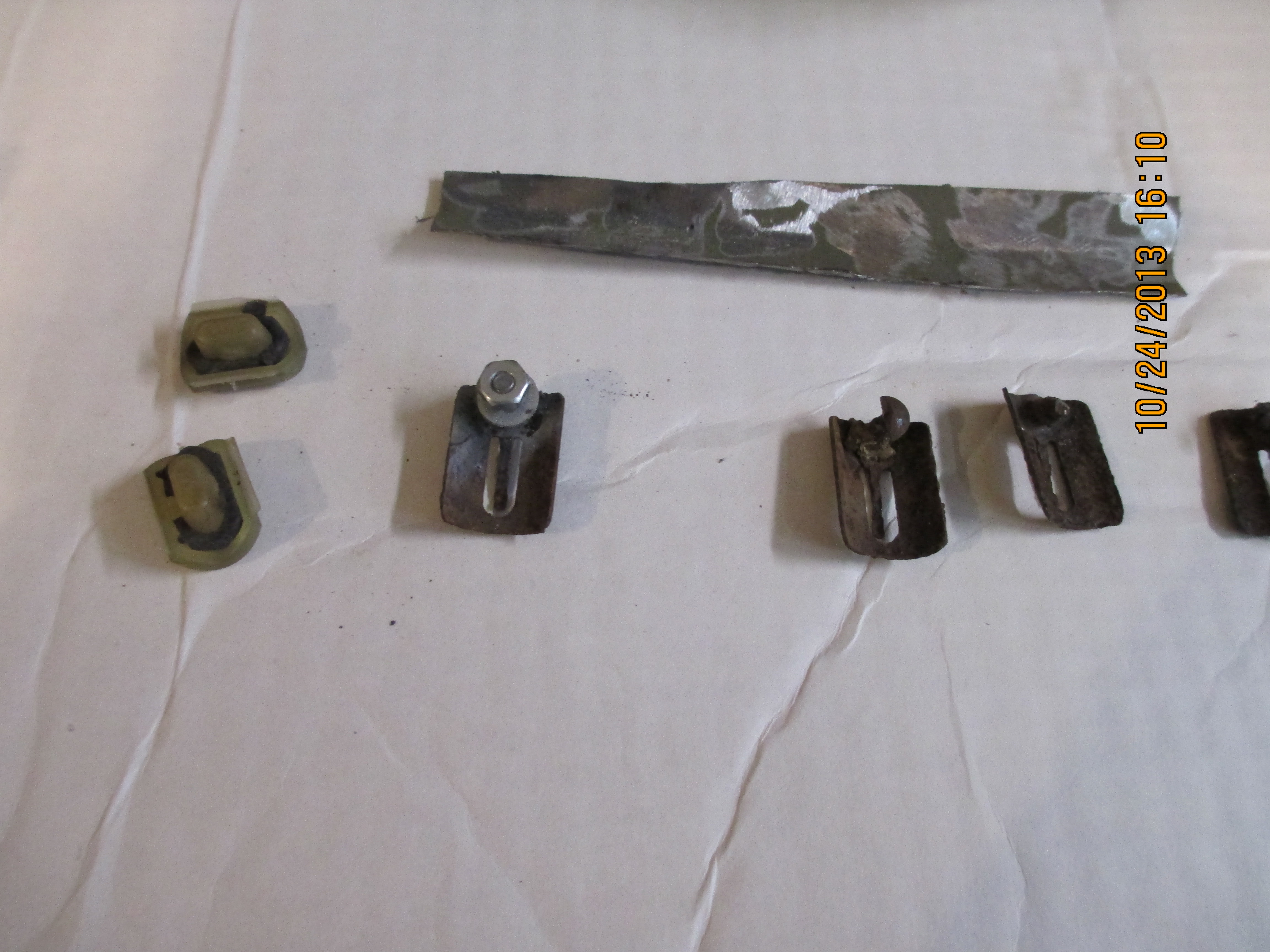

What I'm doing is using a piece of scrap metal from car door or fender and cut it into strips about he width that goes into the car's trim piece, then drill a hole in the center and put 1/8" small bolt through it.  Then use my wire welder to tack weld it fast.  If it's a little too large to fit into the trim piece I grind it down to fit and bend it slightly to make it fit snug.  I did several of the other trim pieces like that where the old ones broke or had to ground off to get the trim piece off.  Hope you can see by the pictures what I've done.  I think this is what you are looking for.
Ken Clark

From: kcvair at hotmail.com
To: jp0181 at yahoo.com
Subject: RE: <VV> 60 Corvair beltline trim width
Date: Mon, 28 Oct 2013 21:30:40 -0400




I'll show you what I've got so far.  Somewhat crude but should do the job for the areas where you can get to the interior area like the hood and doors.  I'll get you a picture or 2 tomorrow.  Ken

Subject: Re: <VV> 60 Corvair beltline trim width
From: jp0181 at yahoo.com
Date: Mon, 28 Oct 2013 20:16:48 -0400
To: kcvair at hotmail.com

Any progress?

J. Smalley
On Oct 20, 2013, at 9:27 PM, Ken Clark <kcvair at hotmail.com> wrote:




Justin--I'll make some this week and if they work I'll let you know..Ken

Subject: Re: <VV> 60 Corvair beltline trim width
From: jp0181 at yahoo.com
Date: Thu, 17 Oct 2013 11:22:12 -0400
To: kcvair at hotmail.com

No picture came through. Make me sum ken for the whole car. I'm in the military and really have no were to make any or the machinery to do so.

J. Smalley
On Oct 17, 2013, at 11:20 AM, Ken Clark <kcvair at hotmail.com> wrote:




Eric, Justin--they look homemade, similar to what I'm going to make.  I think they will work.  Ken

> From: ericlucas at hotmail.com
> To: jp0181 at yahoo.com; virtualvairs at corvair.org
> Date: Wed, 16 Oct 2013 23:18:44 -0400
> Subject: Re: <VV> 60 Corvair beltline trim width
>
> Justin,
>
> Have you seen these?
>
> http://corvaircenter.com/phorum/read.php?1,372755,372868
>
> http://corvaircenter.com/phorum/read.php?1,501244,501329
>
> https://www.google.com/search?q=corvair+beltline+clips+site:corvaircenter.com&num=100
>
> Eric in Indiana
>
> > From: jp0181 at yahoo.com
> > Date: Wed, 16 Oct 2013 22:43:23 -0400
> > To: virtualvairs at corvair.org
> > Subject: <VV> 60 Corvair beltline trim width
> >
> > Anyone know what the width is? So I could find replacement clips?
>
