<VV> any known flat 8 cylinders/Chevy

Nick Elzinga starship at worldonline.co.za
Tue Sep 17 03:55:28 EDT 2013

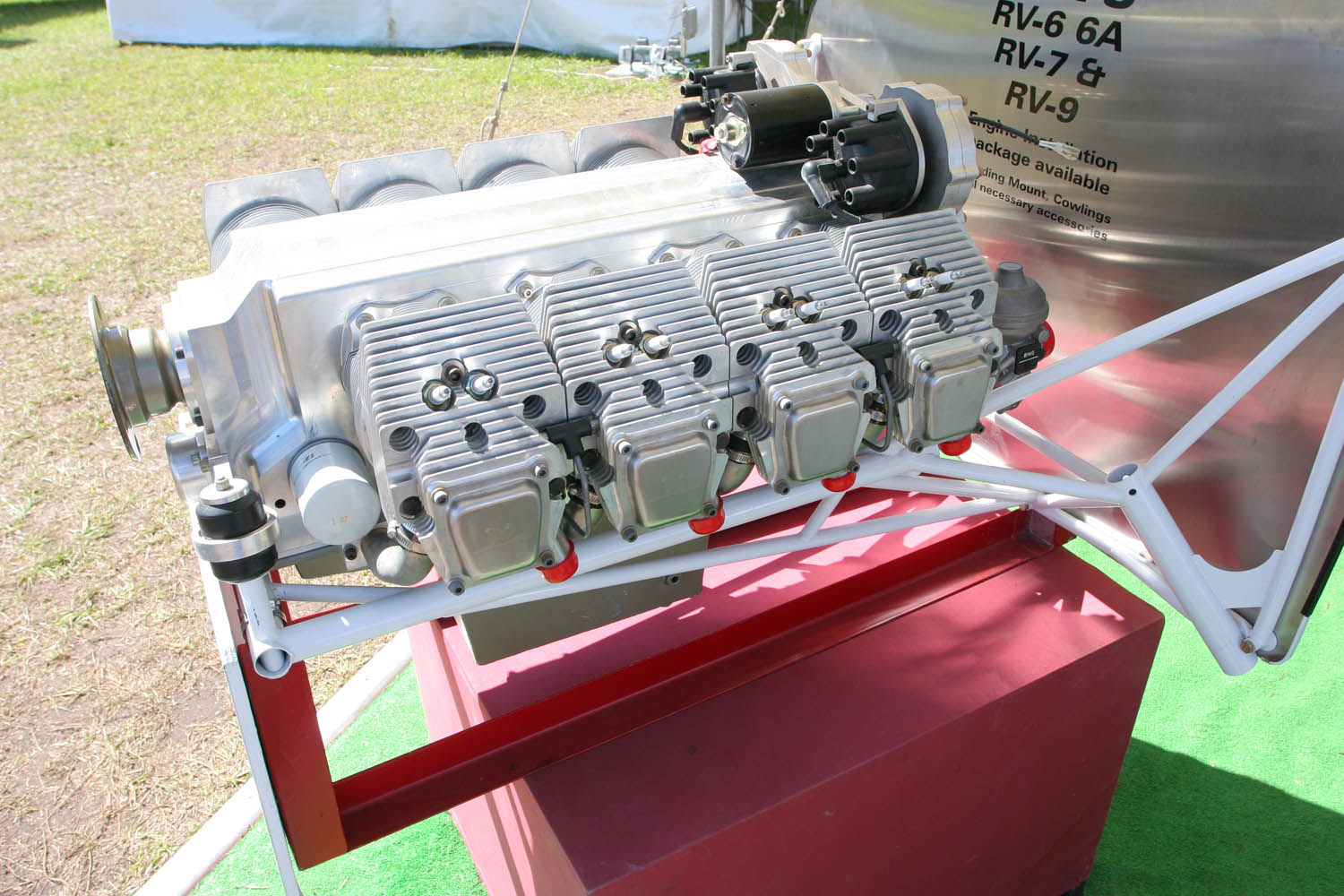

Jabiru, the Australian aircraft manufacturer had a flat eight available,
although it isn't currently listed on their website. I think it may be
available to order.  The J5100 engine has the following specifications

    4 Stroke
    8 Cylinder horizontally opposed
    1 central Camshaft with Push Rods
    Over head Valves (OHV)
    Ram air cooled
    Wet Sump lubrication
    Direct Propeller drive
    Dual independent transistorised Magneto Ignition
    Integrated AC Generator
    Electric Starter
    Mechanical Fuel Pump
    Naturally aspirated - 2 pressure compensating Carburettors
    10 Bearing Crankshaft

Engine Specifications:

    Displacement.........................5100cc (310in)
    Bore.....................................as above
    Stroke..................................85mm
    Rotation of Prop Shaft..............clockwise - pilot's view - tractor
    Ramp Weight..........................120kg (264lb) inc. Exhaust, Carb.,
Starter Motor, Alternator & ignition systems
    Power rating..........................170hp @ 2,700rpm, 180hp @ 3000 rpm
    Fuel consumption...................30-31 l/hr @ 75% power (6.8 imp gph)
(On an RV6 with Sensenich propeller @ 2600RPM)
    Fuel......................................AVGAS 100/130
    Oil.........................................Aeroshell W100 or equivalent
    Spark Plugs............................NGK D9EA - Automotive

Nick Elzinga

-----Original Message-----
From: virtualvairs-bounces at corvair.org
[mailto:virtualvairs-bounces at corvair.org] On Behalf Of Mark Durham
Sent: 17 September 2013 00:48
To: hallgrenn at aol.com; mmccrae6 at cox.net; cooperj123 at msn.com;
hharpo at earthlink.net; virtualvairs at corvair.org
Subject: Re: <VV> any known flat 8 cylinders/Chevy

Bob, I remember reading something about that, too, but didn't keep any of
the info.
Mark Durham

Sent from my Windows Phone
------------------------------
From: hallgrenn at aol.com
Sent: 9/16/2013 14:00
To: 62vair at gmail.com; mmccrae6 at cox.net; cooperj123 at msn.com;
hharpo at earthlink.net; virtualvairs at corvair.org
Subject: Re: <VV> any known flat 8 cylinders/Chevy

Didn't Chevy put one based on a Corvair engine in a 1962 full size Chevrolet
to try it out?  I've seen grainy photos in the Communique.

Bob
 -----Original Message-----
From: Mark Durham <62vair at gmail.com>
To: Michael McCrae <mmccrae6 at cox.net>; James Cooper <cooperj123 at msn.com>;
hharpo <hharpo at earthlink.net>; virtualvairs <virtualvairs at corvair.org>
Sent: Mon, Sep 16, 2013 4:56 pm
Subject: Re: <VV> any known flat 8 cylinders

 Yes, the Piper PA-24-400, and a Aero
Commander twin used a pair of them, and there were a bunch of ag spray
planes that used them, too.

I used to work on a couple of them. They had cooling issues, getting good
air from the front of the cowl to those two back cylinders. But otherwise a
reliable smooth engine.

Mark Durham
Hauser , Idaho

Sent from my Windows Phone
From: Michael McCrae
Sent: 9/16/2013 9:31
To: James Cooper; hharpo at earthlink.net; virtualvairs at corvair.org
Subject: Re: <VV> any known flat 8 cylinders ....that engine was used in the
Piper Comanche 400.

mike McCrae

> From: cooperj123 at msn.com
> To: hharpo at earthlink.net; virtualvairs at corvair.org
> Date: Sun, 4 Mar 2012 14:42:58 -0500
> Subject: Re: <VV> any known flat 8 cylinders
>
>
> Lycoming made an IO720 opposed 8 cylinder aircraft engine, but I've
> never
worked on one or seen it in use that I can remember.
>  > Date: Sun, 4 Mar 2012 11:40:21 -0800
> > From: hharpo at earthlink.net
> > To: virtualvairs at corvair.org
> > Subject: Re: <VV> any known flat 8 cylinders
> >
> >
> >
> >
> > -----Original Message-----
> > >From: Marc Sheridan <sheridanma1966 at gmail.com>
> > >Sent: Mar 4, 2012 11:36 AM
> > >To: Trey Bosson <corvairbo at yahoo.com>
> > >Cc: virtualvairs at corvair.org
> > Tatra
> >
> > >Subject: Re: <VV> any known flat 8 cylinders
> > >
> > >All it takes is a few key strokes at Google:
> > >
> > >http://en.wikipedia.org/wiki/Flat-eight_engine
> > >
> > >On Sun, Mar 4, 2012 at 2:19 PM, Trey Bosson <corvairbo at yahoo.com>
wrote:
> > >
> > >> is there any 8 cyl air or h20 engines made   trey bosson  wellsville
ny
> > >>
