<VV> PG connector diagram

[Michael Kovacs]

   On Monday, July 15, 2019, 1:45:15 PM EDT, Mike Callahan via VirtualVairs <virtualvairs at corvair.org> wrote:

 I need a diagram of the pg shifter.  I only have starter wires connected,
there are 3 other pins,  what connects to them?

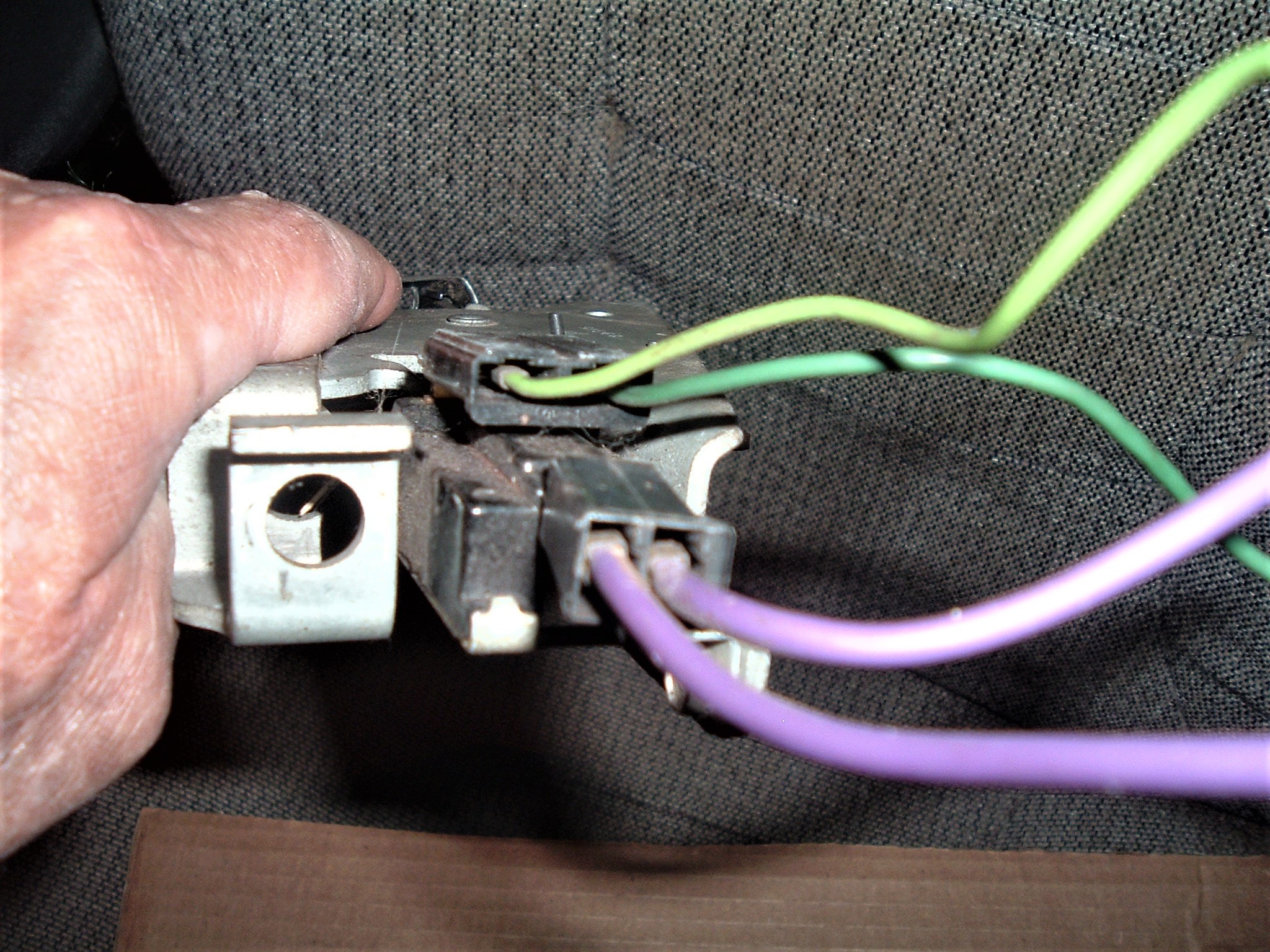

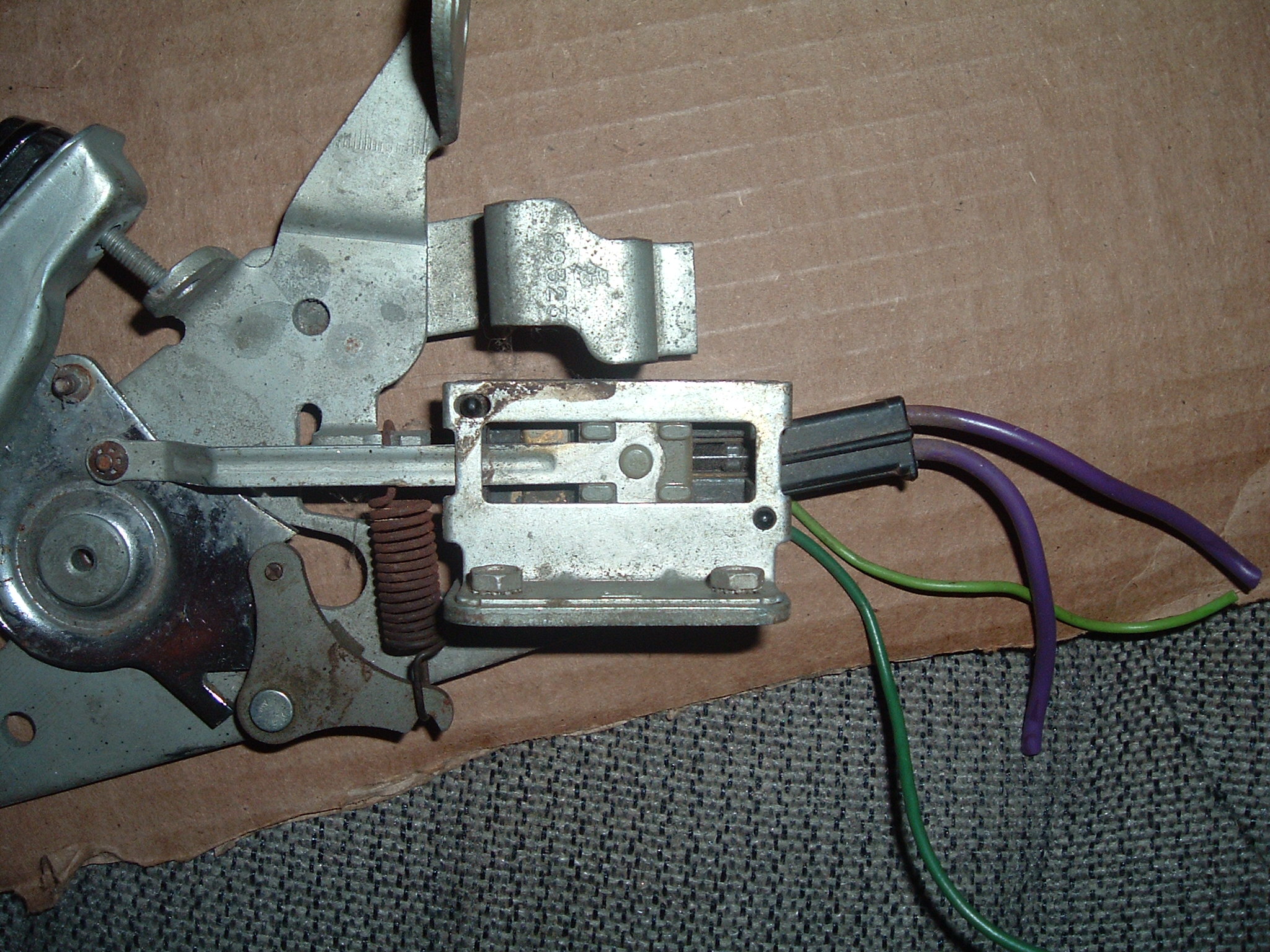

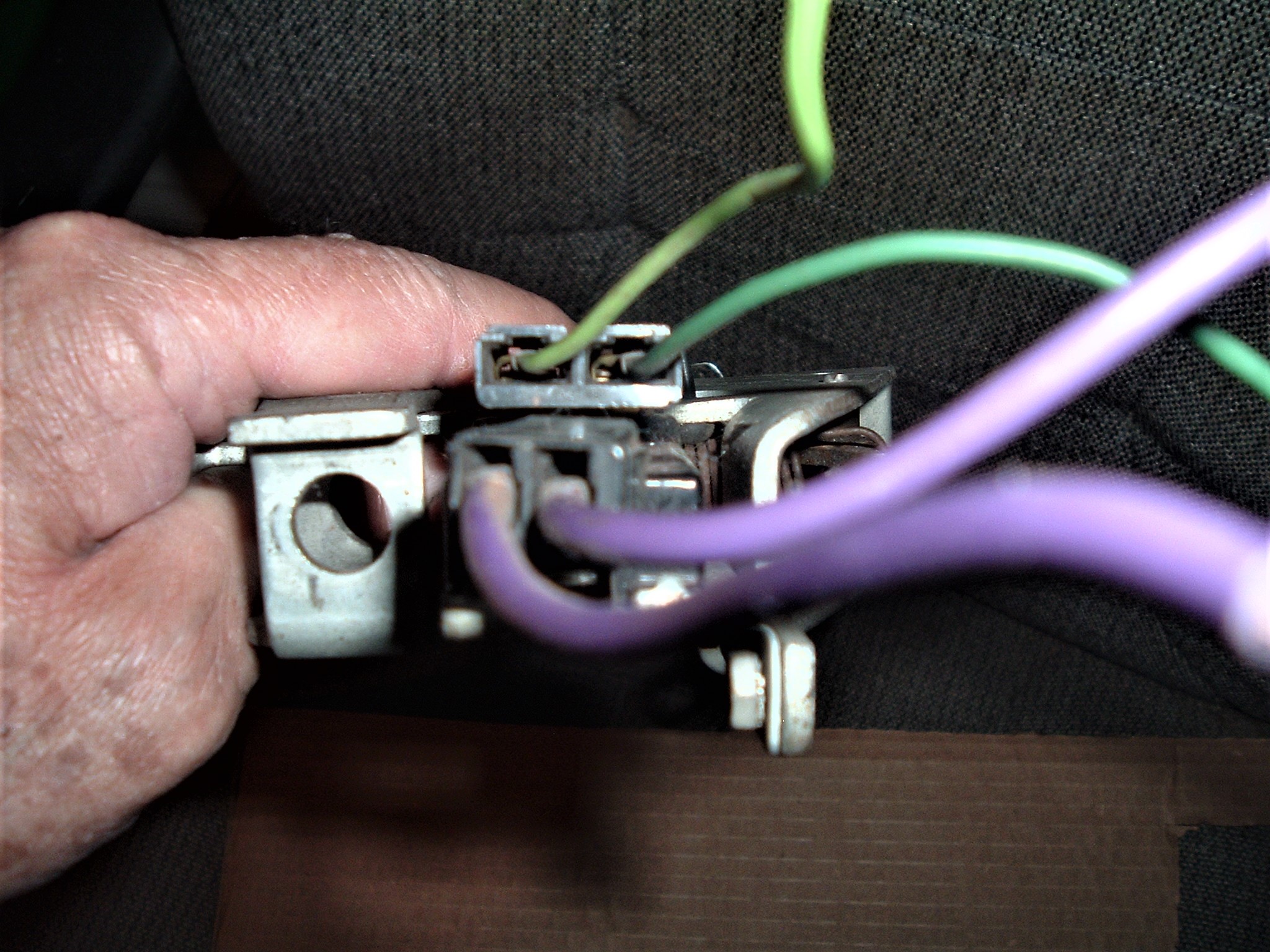

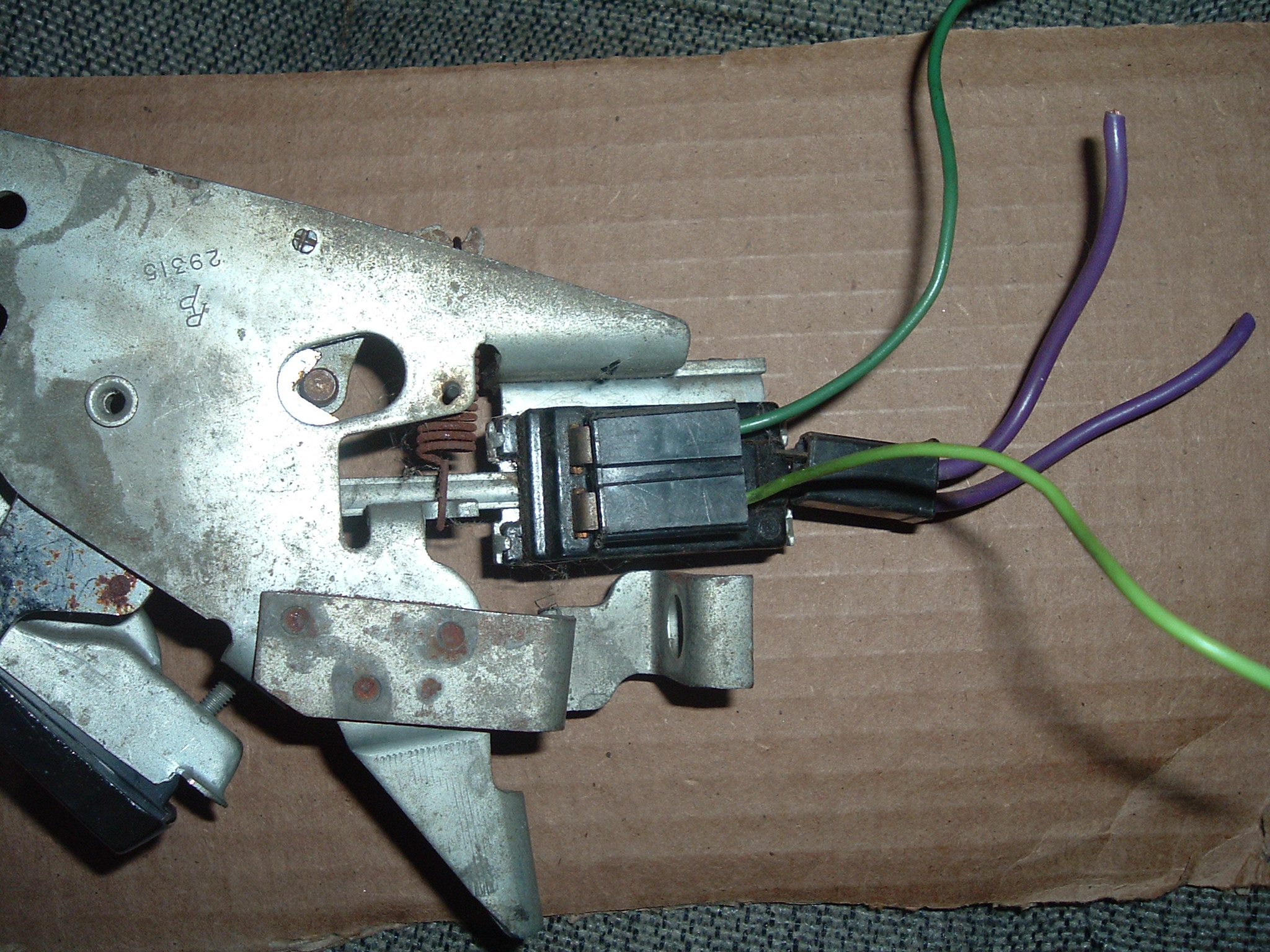

 Mike The only shifter for the PG that I know of is the one that I have pictured. Trans shifted by cable. other switches are neutral and reverse switch.   Any help?  Mike
