[FC] Bench seat on a Rampside

[Larry Sherwood]

That is the latch. Loosen the wingnut with seat back down, and move the
slotted piece so that it slides over the head of the bolt the seat back
rests on. Then tighten the wing nut. That latches the seat back so it won't
fold forward

Larry
On Apr 23, 2014 8:03 PM, "J. R. Read" <hmlinc at sbcglobal.net> wrote:

>  OK - So - very curious.
>
> A difference between Standard and Deluxe?
>
> Mine is a Standard '61.
>

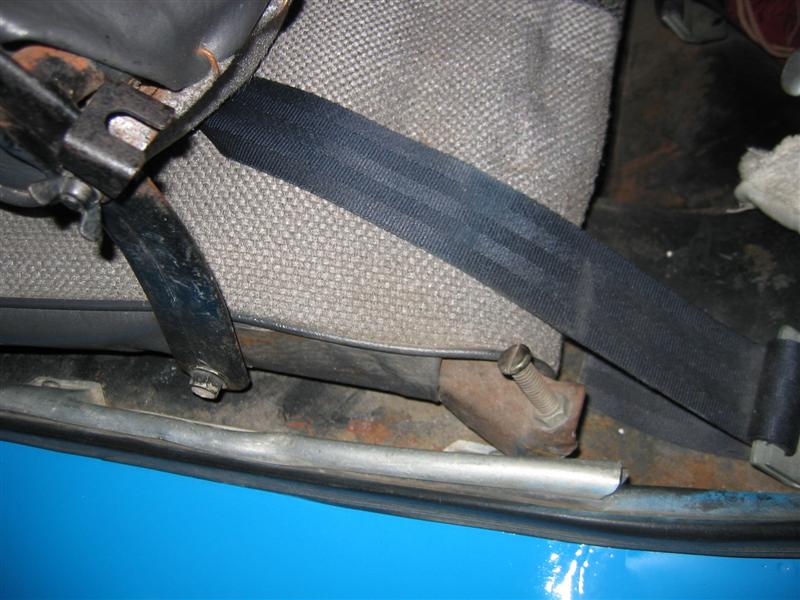

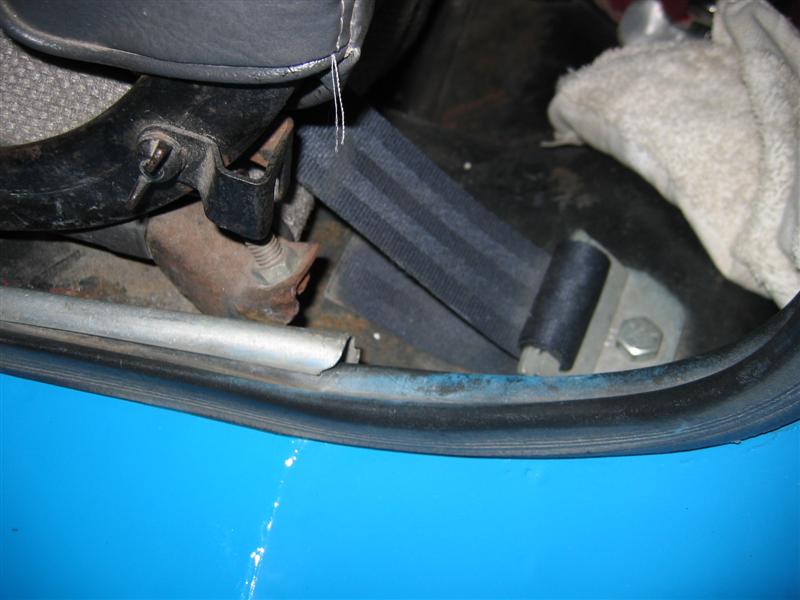

> I got so curious that I went to the rental garage where the Ramp is stored
> and took a couple of pictures.  It does NOT have a latch, but maybe it once
> did?  There is a bracket with a slot in it at the bottom corner of the seat
> back (driver side) which does not seem to have any real function.  Maybe
> that is the remnants of what was once a latch?
>
> Pictures attached - should be 2 URLs below.
>
> Later, JR
>
>
>
> ------------------------------
>    <http://www.avast.com/>
>
> This email is free from viruses and malware because avast! Antivirus<http://www.avast.com/>protection is active.
>
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 2014-04-23 18.21.07 (Medium).jpg
Type: image/jpeg
Size: 57123 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/corvanatics/attachments/20140423/b68fb2dc/attachment.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 2014-04-23 18.21.45 (Medium).jpg
Type: image/jpeg
Size: 78494 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/corvanatics/attachments/20140423/b68fb2dc/attachment-0001.jpg
