[NoVa-Corvairs] Noob May Need a Good Used Head

[goopofoil at aol.com]

The carb studs... can they be removed but putting two of the hold down nuts on the threads and back them out?  Does the vacuum fitting on back of the carb base need be removed?

 Hi Dan,

The vacuum fitting does Not need to be removed unless you Need it for a replacement head.

The answer is Yes on the Carb Stud nuts...Sometimes. Use plenty of Penetrating Oil at the head, and if the double nut does not work, I sometimes used two vice grips opposite each other like a T to turn out the stud.
A little heat never hurts also.
The First minute of this Youtube video I found, shows what to do on the studs.
https://www.youtube.com/watch?v=MryIUvxE_aA

Mark Holmlund





-----Original Message-----
From: Dan Weiss via Novacc-list <novacc-list at corvair.org>
To: novacc-list <novacc-list at corvair.org>
Cc: Dan Weiss <dkakd at aol.com>; bryan <bryan at skiblack.com>
Sent: Tue, Mar 7, 2017 7:54 pm
Subject: Re: [NoVa-Corvairs] Progress Update and HEY FRED!!!



Fred,


I was speaking with Bob Marshall yesterday, and he suggested that I contact you to see if you would be willing to let me host this month's meeting to enlist the help of the club with the head removal.   If so, that would be great.  It would be a great learning opportunity for me and others who can come.  If not, I understand.  Thanks.

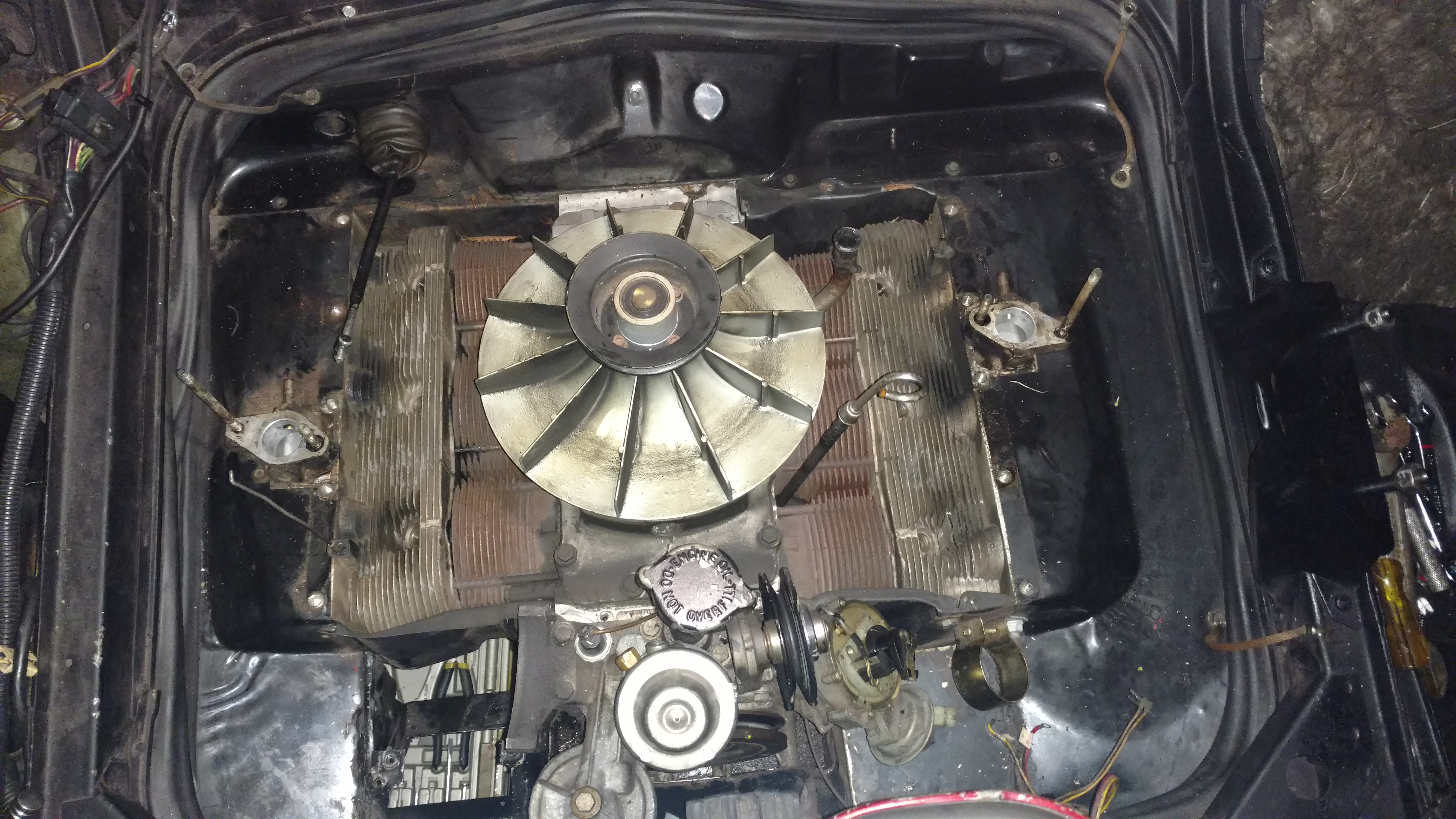

Made some progress today on the topside.  I hope that once I get the shrouds and compartment seal off, which I want to replace, I will be able to access the last bolt holding on the heater shroud on the back left corner of the compartment next to the head.  Cannot get a socket or wrench on it.  I am certainly learning a lot for sure.  Vernon was giving me some tips on the upper head bolts, but for now the thing that bugs me is wasting a fresh oil change.  He refused to tell me how he got the bolt out.  Obviously, a rite of passage into corvair manhood!  I think once I get the seal off, I'll have access.  For now, no spoilers please as Vernon has challenged my Corvairhood....  "Vern, Vern, Vern, Vern, Vern, Vern, Vern," typed in my best Jim Varney accent.


The carb studs... can they be removed but putting two of the hold down nuts on the threads and back them out?  Does the vacuum fitting on back of the carb base need be removed?

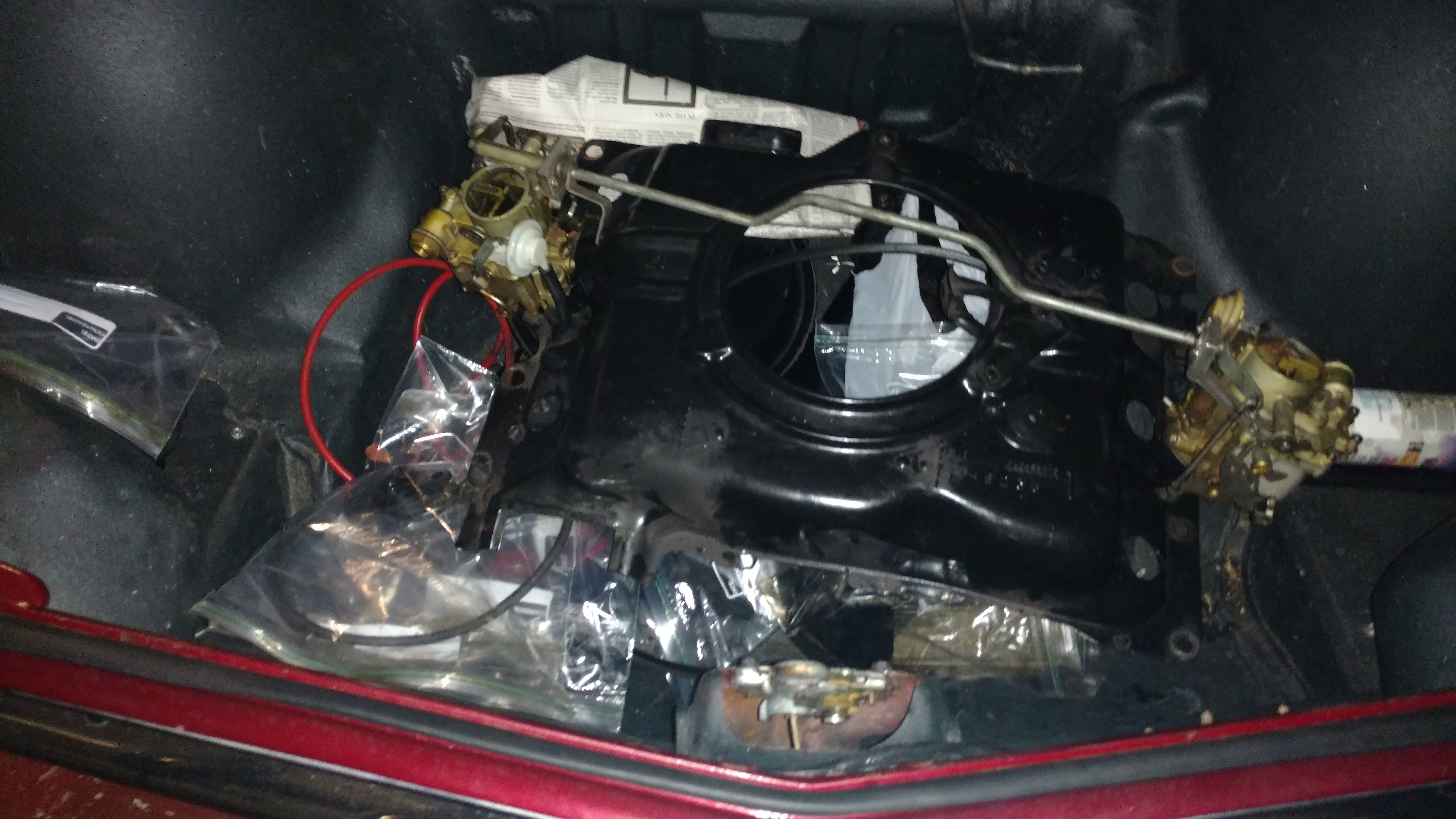

Here's my parts filing system, a trunk and lots of baggies...






Anyway, if Fred agrees to switch the meeting, I thank all in advance who would be willing to come and help.  I will get some donuts and bagels. If you have a preference of bagel, let me know.


Also, afterward, if anyone would like to, all are welcome to clean up and hang out for a while and play some pinball.  I have been restoring and collecting games for about 20 years and have been turning my collection over from solid state to the older electro-mechanicals.  Happy to get some pizza for lunch as well.


Thanks,


Dan


-----Original Message-----
From: Bryan Blackwell via Novacc-list <novacc-list at corvair.org>
To: Northern Va Corvair Club <novacc-list at corvair.org>
Cc: Bryan Blackwell <bryan at skiblack.com>
Sent: Tue, Mar 7, 2017 10:02 am
Subject: Re: [NoVa-Corvairs] Noob May Need a Good Used Head

Remove the top shroud and side shroud.  You are following the shop manual procedure, correct?

--Bryan

> On Mar 6, 2017, at 6:09 PM, Dan Weiss <dkakd at aol.com> wrote:
>
> I cannot for the life of me figure out how to remove the heater hose shroud that was hiding the number.  I removed the bottom corner bolt and the bolt inside the housing, but there does not seem enough clearance for either a ratchet or box end wrench.  Any tips?
>
