RMC List - Seeking Power Convertible top circuit breaker

[Rob Brereton]

Thanks Jon.  That matches the part Clarks shows as the "usable" option, and
the parts on the left in Tony's picture.

I will grab one if I need to but want to avoid extra holes and go original
style if possible.  I am looking to get together with Tony and look at the
one on the right which is the original form and fits the existing holes.

Thanks,
Rob


*Rob Brereton*


On Tue, Oct 29, 2024 at 7:42 PM Jon Whiteley <jonlwhiteley at comcast.net>
wrote:

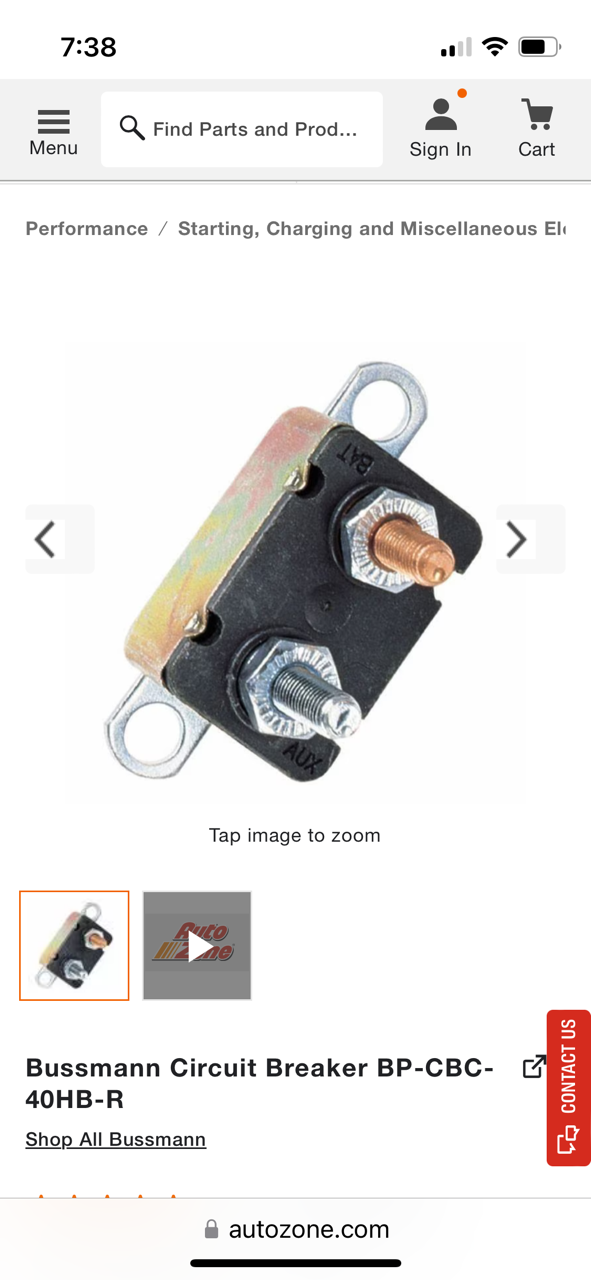

> Rob, you might use a 40 amp breaker like this one from Autozone as an
> interim piece.
>
> Jon
> [image: image0.png]
> Sent from my iPhone
>
> On Oct 29, 2024, at 5:27 PM, Rob Brereton via RMC-List <
> rmc-list at corvair.org> wrote:
>
>
> Good evening,
>
> I spent some time getting my power top motor working so that it runs both
> ways.  I'm preparing to replace the hail damaged top.
>
> The switch was dirty and took some cleaning up, as well as the
> connections.  But there was one bad part, and I am hoping one of you has
> one.  The circuit breaker tests as an open circuit, and it doesn't run with
> it in place.  It is bypassed temporarily.
>
> As I turn it over to a shop to replace the top, I would prefer to have
> that in place with them cycling it up and down.  They could call any day
> to say they are ready for me, so hoping to find one locally.
>
> It is the 40 A type.  Some of you may not have seen one, it sits back by
> the battery on the 65 convertible.  Here's a picture.  It's not a great
> picture, as I took it in an inspection mirror while reading the amp rating
> this morning.  After that is a picture from Clark's page 295.
>
> Thanks,
> Rob
>
> *Rob Brereton*
> <20241029_094044.jpg>
>
> <image.png>
>
>
