[SCG] Stock Corvair

[Gary Baxter]

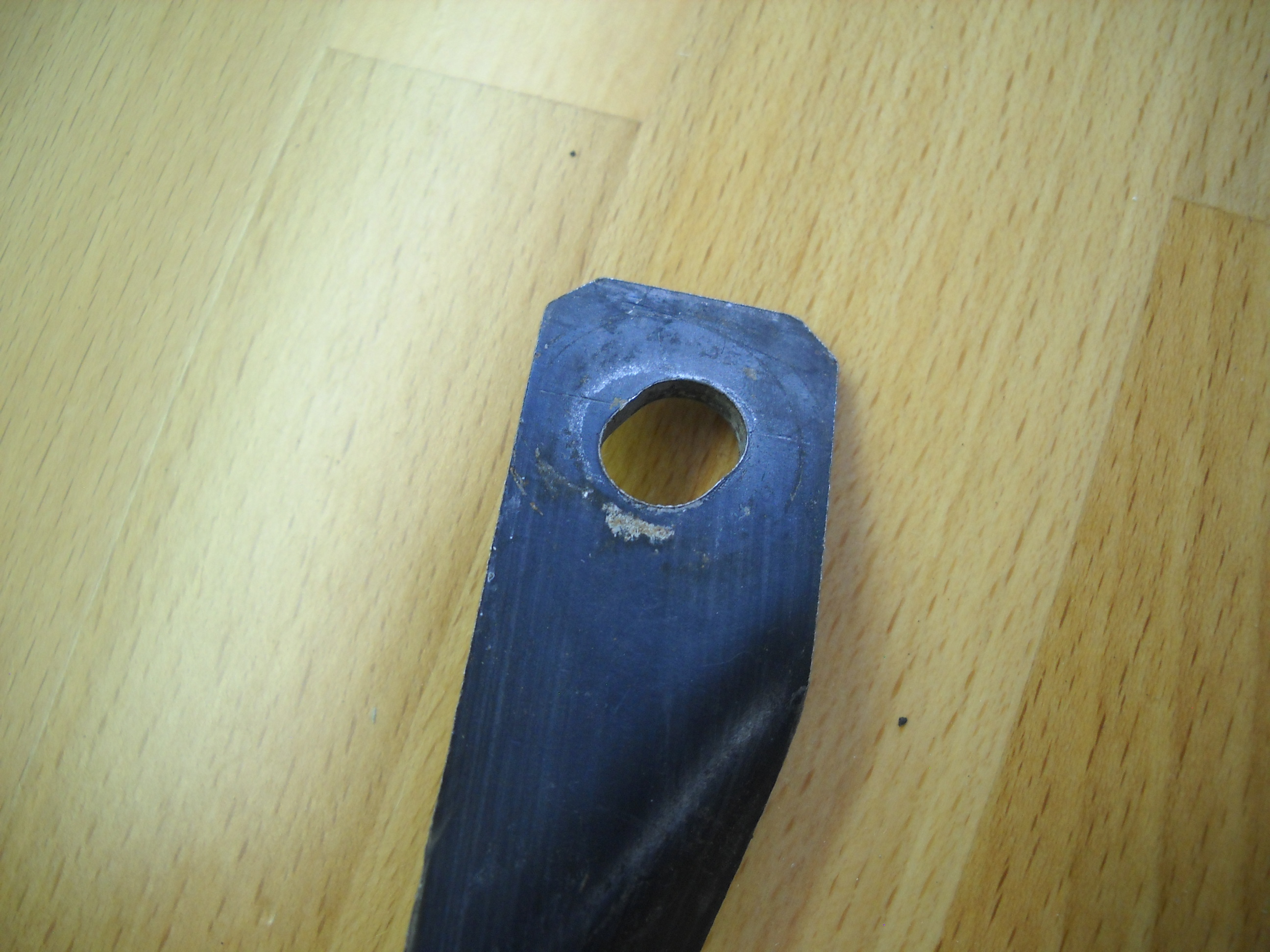

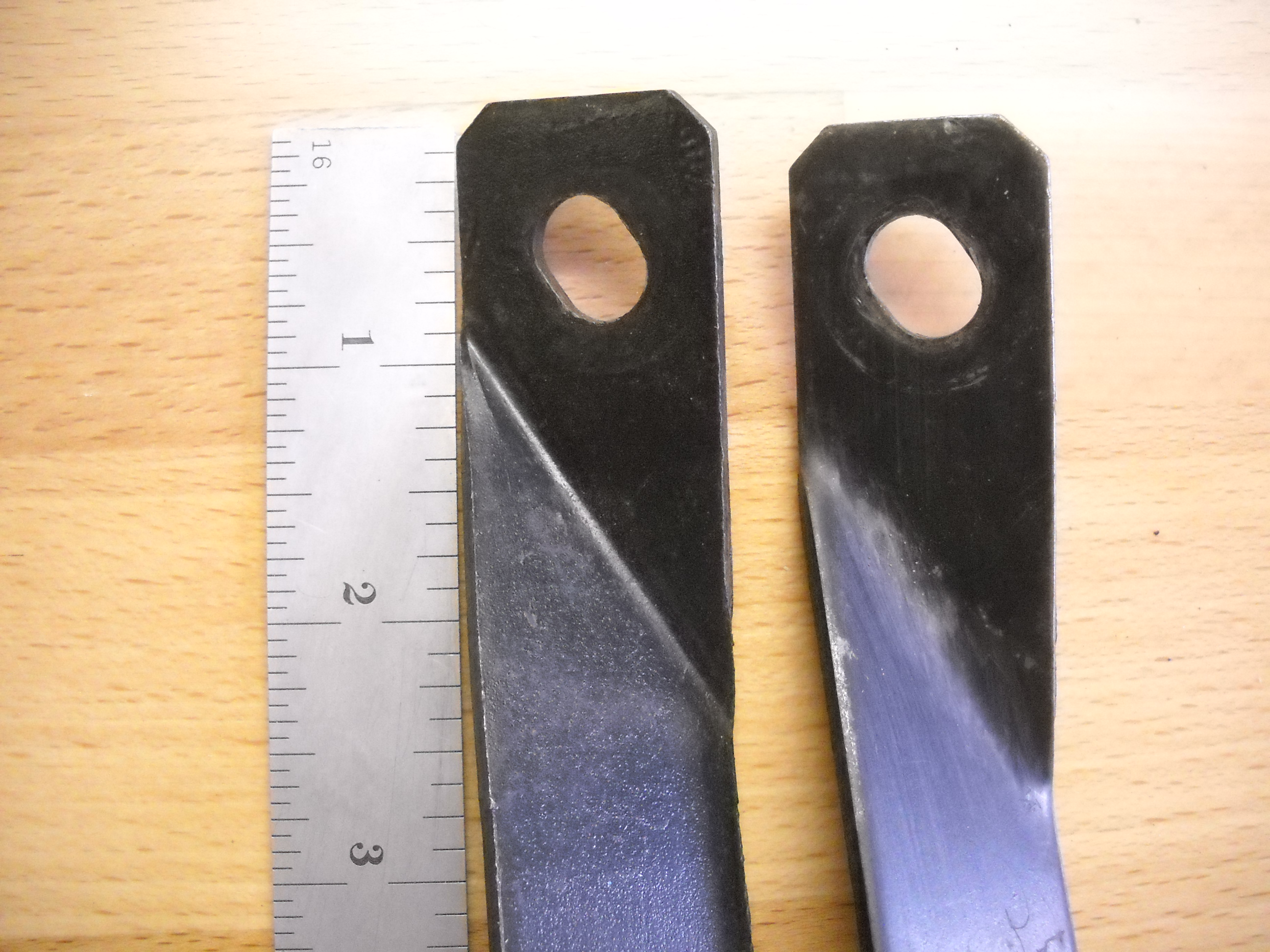

I have been able to determine that the brace with the shorter top section is the first design.  The shorter style also has a noticeably sharper bend.  In April '65 it was changed to the longer style and a spacer added between the brace and the alternator.  I found the outline of the spacer on the back of some long style, but not on any short ones.  I verified this with an owner of an original '69 which had the long style.  The spacer was used through '66.  I do not have a '67 Assembly Manual to tell when the spacer was discontinued.  It was not shown in the '68 and '69 Manuals, Section 6, page A3.

Gary
----- Original Message -----
From: William Hubbell<mailto:wjhubbell at gmail.com>
To: Gary Baxter<mailto:morsa66 at outlook.com> ; scg-list at tiger.skiblack.com<mailto:scg-list at tiger.skiblack.com>
Sent: Sunday, April 16, 2017 4:59 PM
Subject: Re: Stock Corvair

I'm no expert on it, but perhaps somebody on the Stock Corvair Group mail list can help?

Bill

On Apr 16, 2017, at 5:56 PM, Gary Baxter <morsa66 at outlook.com<mailto:morsa66 at outlook.com>> wrote:

I am trying to determine the correct early '65 alternator brace.  I know there are two different ones, and one has a shorter top leg with a noticeable tool line at the upper bend.  The early one had no spacer, while in April '65 the brace was changed and a spacer added between the brace and alternator.  The second style brace was used from then on, but the spacer was gone by '68.  I do not know it was used in '67.   Can you shed any light on which brace is the early one?

Thanks,  Gary Baxter
