<VV> FW: wireing for 63 coupe for alternator

[Dave Thompson]

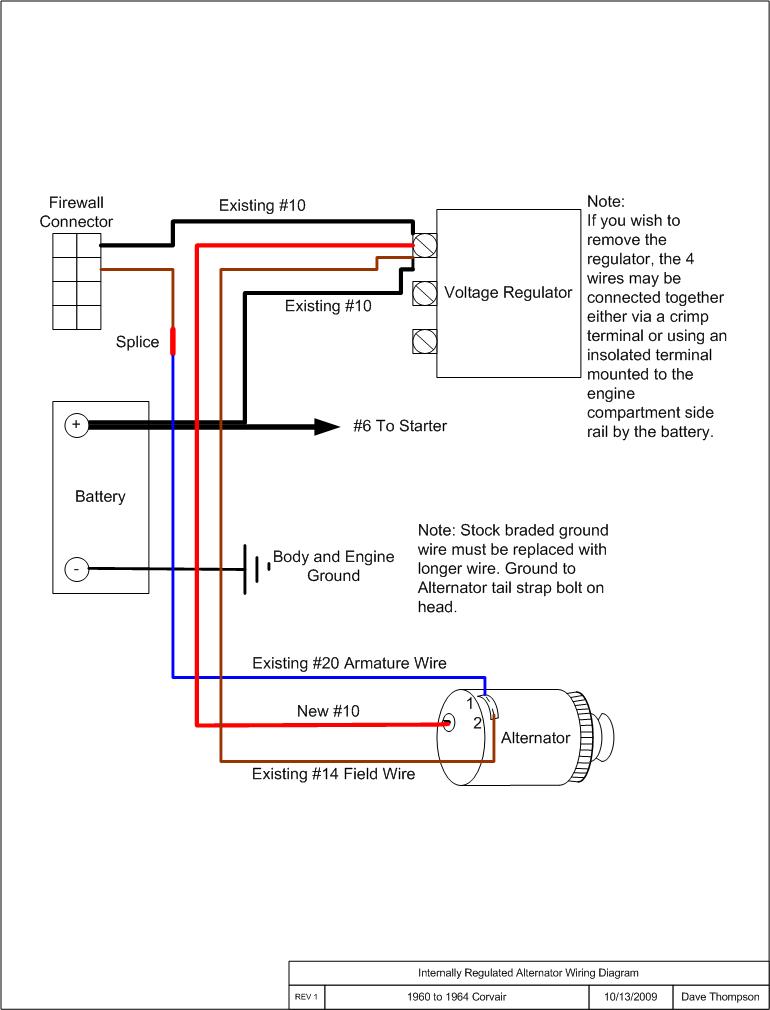

I sent a drawing off list to Garland that I drew of the early alternator
wiring. It dawned on me that others might want it too, so here it is.



Enjoy



Dave Thompson



  _____

From: vairdad at aol.com [mailto:vairdad at aol.com]
Sent: Thursday, January 07, 2010 6:05 AM
To: dave.thompson at verizon.net
Subject: Re: <VV> wireing for 63 coupe for alternator



great drawing, after it warms up i will go hook up every thing.

thanks

Garland



In a message dated 1/7/2010 1:37:15 A.M. Eastern Standard Time,
dave.thompson at verizon.net writes:

Here's a drawing I made several years ago. Hope it helps.

Dave Thompson

-----Original Message-----
From: Vairdad at aol.com [mailto:Vairdad at aol.com]
Sent: Wednesday, January 06, 2010 6:13 PM
To: virtualvairs at corvair.org
Subject: <VV> wireing for 63 coupe for alternator

cleaning engine compartment for new purchase 63 coupe. took wiring harness
out thinking i could remember how  all wire would go back. the problem is i
forgot i could not remember anything. could someone please help and send
directions on where wires go.
Thanks
garland

-------------- next part --------------
A non-text attachment was scrubbed...
Name: Early Internal Alternator Wiring.jpg
Type: image/jpeg
Size: 73607 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20100107/e4c32b97/attachment.jpg
