<VV> Explain wheel off-set again ???

[Matt Nall]

I'm confused. If backspace is the distance from the inside rim to the
mounting face, what is offset?
Harry Yarnell

=======================================================


"Offset"  is the difference from the wheel's center being mounted to the rim, IE:


6" rim....  3"  is the middle.... "0" offset  / 3" BS


Mount the center 2"  from the outer edge...and you have "-  1"  offset"  / 4"  BS


Mount the center 2"  from the inner edge...and you have "+  1"  offset"  / 2"  BS [  Common on most 60's cars.. ]

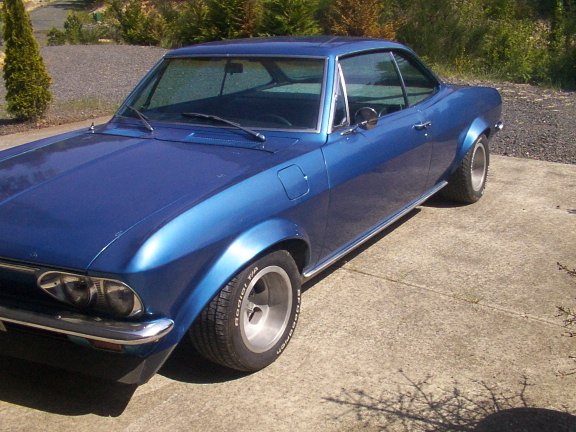

 Here's my  9" / +5"  offset / 2" BS






Matt Nall
Charleston, Oregon
http://mysite.verizon.net/nalllm
