<VV> Electric Fuel Pump

[larry]

These electrical diagrams may help.

Larry

-----Original Message-----
From: virtualvairs-bounces at corvair.org
[mailto:virtualvairs-bounces at corvair.org] On Behalf Of Bill H.
Sent: Tuesday, December 27, 2011 5:28 AM
To: dixon5553 at yahoo.com
Cc: virtualvairs at corvair.org
Subject: <VV> Electric Fuel Pump

                                            B"H

Rich:  I successfully installted an electric pump on my 66 Monza just after
the fuel tank under the car.

There is a rubber hose that connects the fuel tank to the metal fuel line
(which in turn runs to the carbs).  I separated the hose from the fuel line
going to the engine and inserted the pump at that point.  The existing hose
from the tank goes to the inlet of the new pump.  You will need to get a
length of metal fuel line and bend it to fit neatly and a small length of
hose to connect to the car's fuel line to the carbs.

THis way you will get the advantage of gravity feeding the pump.  As I
understand it, these pumps are better at pumping fuel than pulling or
sucking it from the tank.  You will also need to drill a hole in the floor
pan to install the pump and run your 12V positive wire to the engine
compartment.  Don't forget to wire an oil pressure and/or inertia switch to
shut the pump off in the event the engine stalls or you have an accident G-d
forbid.

I installed the pump with gas in the tank.  It's messy, you'll get gas
splashed on you when you are disconnecting the tank hose and installing the
pump, but it can be done.

Wear your worst clothes and be preppared to take a shower right after you
finish the job.

You may want to consider getting a shutoff valve to run from the tank to the
pump, so you can shut off the fuel supply in the event the pump needs
servicing (e.g. you want to change the filter which is attached to the
pump).

I found that the electric pump does help the car to idle more smoothly and
give somewhat better performance.  Clark's sells a kit to bypass the stock
fuel pump if you like, but the plug somehow came off the engine block (the
plug doesn't seem to have the hole that the pump does which is how the
lock-screw holds it in place).  Better is to get the bypass plate that
allows you to keep the body of your pump and remove the guts, while
providing a clear passthrough for the fuel.  The old pump base stays in
place with the original lock bolt.  You can keep your stock fuel lines and
the engine compartment looks 100 percent stock.

Good luck...Bill Hershkowitz  66 Monza Sport Sedan 110 PG A/C



 _______________________________________________
This message was sent by the VirtualVairs mailing list, all copyrights are
the property
of the writer, please attribute properly. For help,
mailto:vv-help at corvair.org
This list sponsored by the Corvair Society of America,
http://www.corvair.org/
Post messages to: VirtualVairs at corvair.org
Change your options: http://www.vv.corvair.org/mailman/options/virtualvairs
 _______________________________________________


__________ Information from ESET NOD32 Antivirus, version of virus signature
database 6746 (20111227) __________

The message was checked by ESET NOD32 Antivirus.

http://www.eset.com




__________ Information from ESET NOD32 Antivirus, version of virus signature
database 6746 (20111227) __________

The message was checked by ESET NOD32 Antivirus.

http://www.eset.com

-------------- next part --------------
A non-text attachment was scrubbed...

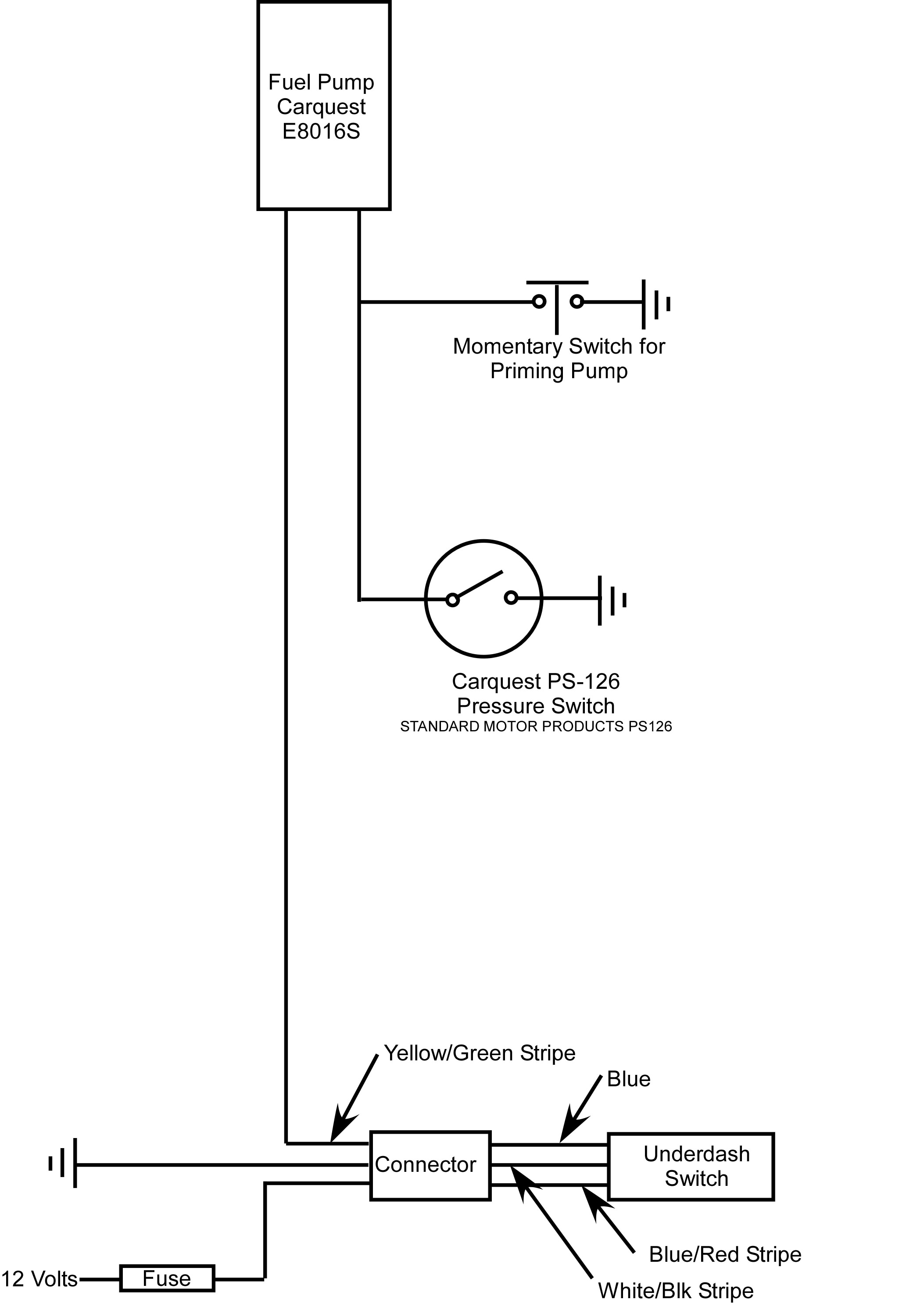

Name: Fuel Pump Diagram_No Relay.jpg
Type: image/jpeg
Size: 193727 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20111227/cfb38924/attachment.jpg
-------------- next part --------------
A non-text attachment was scrubbed...

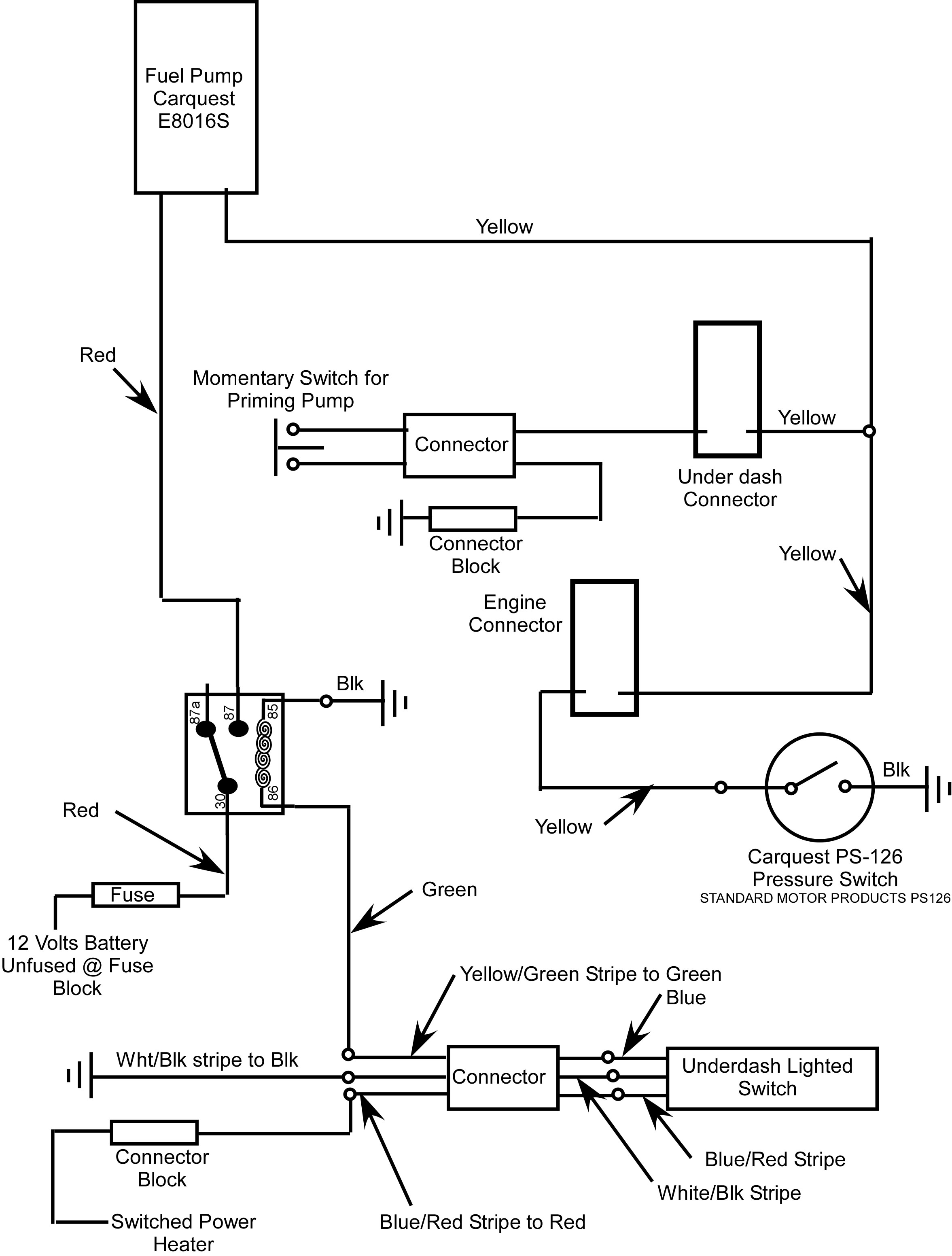

Name: Fuel Pump Diagram_Relay.jpg
