<VV> Electric fuel pump wiring

Cliff Tibbitts tibbitts at qx.net
Tue Dec 27 16:34:02 EST 2011


Here's my version of the fuel pump wiring.  I think it is a bit simpler than
the previous diagrams.  I hope the PDF comes through.  Feel free to pick it
apart, it works and I believe both the pump and the fuse box are well
protected.  According to the manufacturer, the pump only draws 3 amps so I

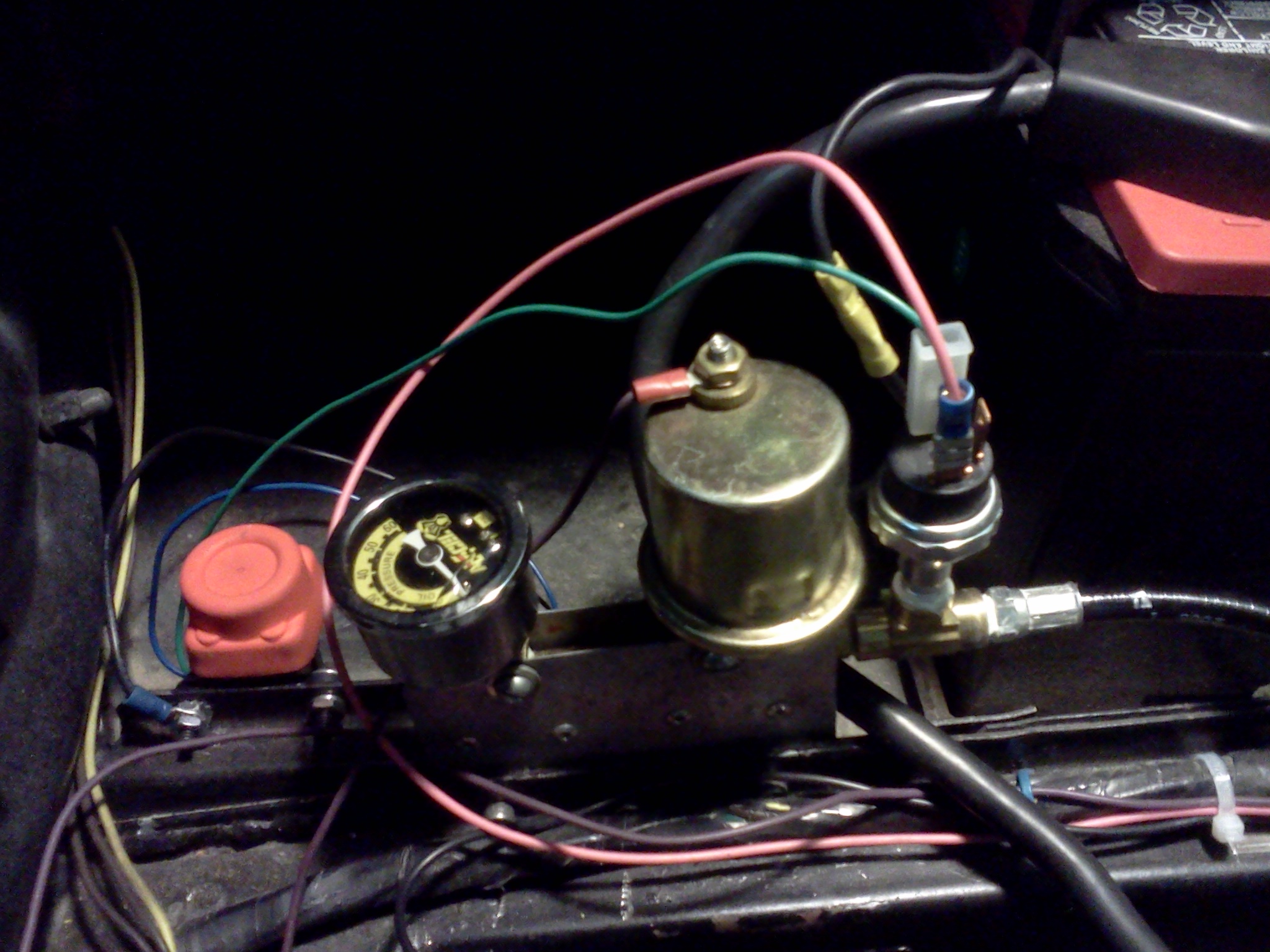

don't feel like I am stressing the fuse box any.  In the picture you can see
the inertia switch as well as the oil pressure switch.  The OP drops out at
5psi.

I welcome opposing views.  After all, I don't want to be driving down the
road and have my car burst into flames like a Pinto.  Thanks as always for
the great advice on this list.

Cliff Tibbitts
Lexington, KY
