<VV> Cam/crank gear alignment
chuck mckinley
cmckinley313 at verizon.net
Sat Aug 11 17:51:51 EDT 2012

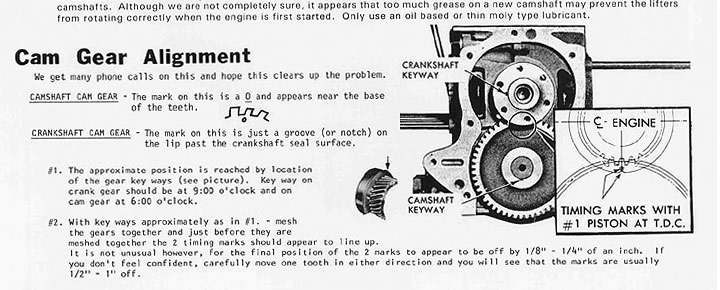

Someone just asked about how to align the cam gear and crankshaft gear -
I deleted the email before thinking about it. Here's the picture from
the Clark's website Tech Tips.
Chuck McKinley
63 Monza 900 80 hp 3-speed
-------------- next part --------------
A non-text attachment was scrubbed...
Name: crank-cam.png
Type: image/png
Size: 253623 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20120811/dc0eee6b/attachment.png
