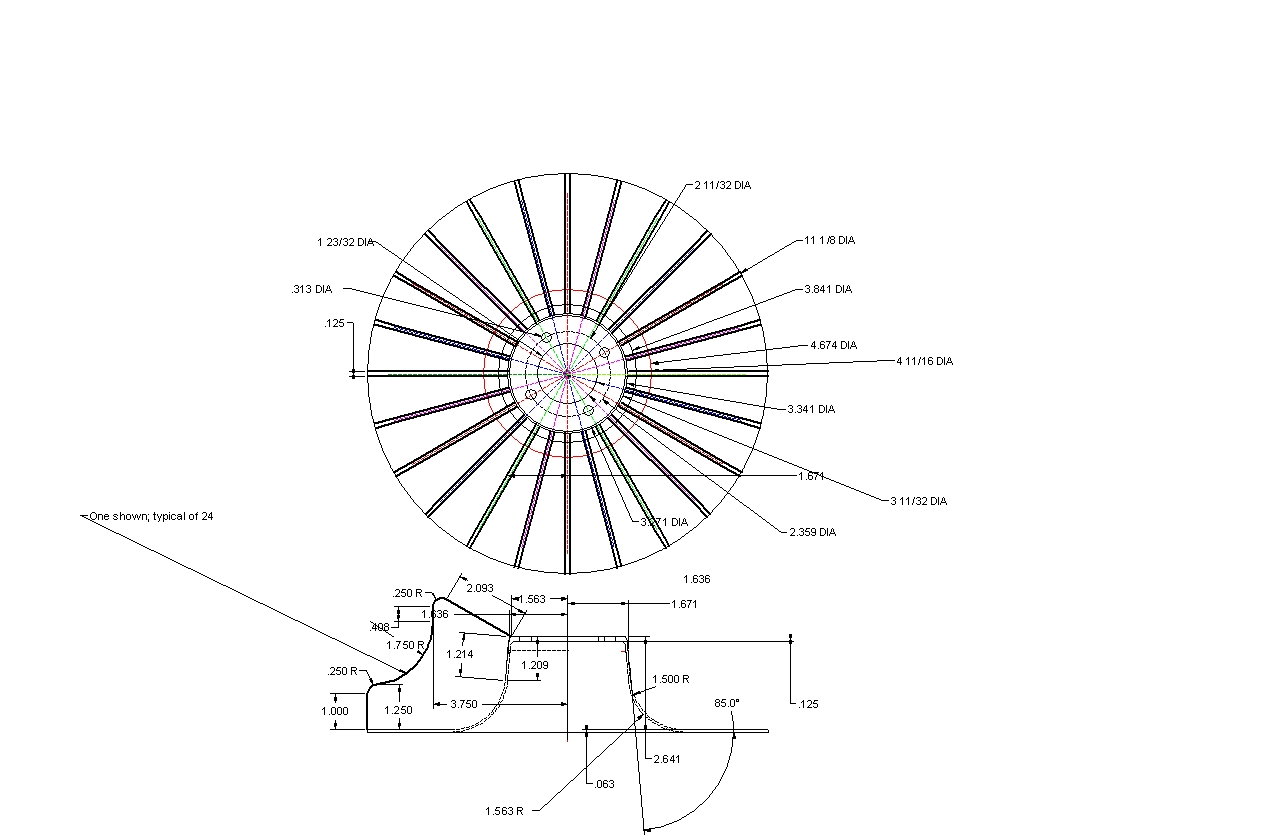

try this one


In a message dated 5/16/2012 3:17:00 P.M. Pacific Daylight Time,
hmlinc at sbcglobal.net writes:

Got  pix?
Later, JR

----- Original Message -----
From:  <ScottyGrover at aol.com>
To: <virtualvairs at corvair.org>
Sent:  Wednesday, May 16, 2012 4:49 PM
Subject: Re: <VV> CHT Re: valve seats  and "Ping"


>I have designed a series of fans for the purpose of  improving the air flow
> through a Corvair's engine. the problem with  any of the factory stock
> units
> is  that there is too  much space between the fan and the upper shroud
> (turkey  roaster)  which allows air to go back by the fan (the technical
> term
>  is"reversion.")  my latest fan design involves a fan with blades which
> rise  up
> into the airstream and a "fan ring" which  fastens to the turkey roaster
> and
> which minimises the gap  between the fan and fixed-position parts.  This
> allows less air  to revert over the fan blades, keeps the air and the
> pressure going  through between the fins where it belongs.
>
> Scotty from  Hollyweird
>

-------------- next part --------------
A non-text attachment was scrubbed...
Name: not available
Type: image/jpeg
Size: 249694 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20120517/9645cb6c/attachment.jpe
