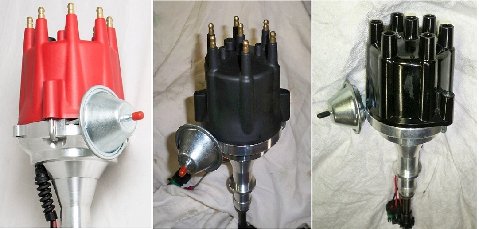

New all-electronic distributor for  Corvair engines – Ready to run!
Features:
Specifically designed to fit the  Corvair motor
OEM style construction and  appearance, replacement parts widely available
Comes complete with distributor cap  and new drive gear
High Energy electronics, using a  magnetic trigger, self-contained inside
the  distributor
Plug and play, no external box to  mount, hook up three wires
Tested in road racing, autocross and  street use
Unit requires 12 volts at coil  terminal, resistance bypass wires are
available
Clears Corvair top shroud sheet  metal
Adjustable mechanical advance, both  rate and limit, included
Uses aftermarket accessories for GM  distributors
Three distributor cap options, stock  style or red/black HEI style
Uses GM WeatherPack style connectors,  with a quick-disconnect for easy
removal
Must use 12 Volt coil or high-output  aftermarket coils. Not OEM coil.
Vacuum advance block-off kit is  included for racing applications
A variety of replacement ignition  wire sets are available, special pricing
if purchased with  distributor
Cautions:
Early 140HP secondary throttle bell  crank interferes with cap – late 140
bell crank can be  substituted
Currently no pressure retard unit is  available.  A turbo-charged engine
will require external boost control of timing. Ask about options.   OEM
pressure retard unit from Corvair  does not fit.
Clears high-mounted Air Conditioning  compressors. May not clear smog pumps
(A.I.R.)
Distributor options. (Prices with  distributor purchase)
Distributor  $150
Choice of Black or Red pin-style cap  (no cost)
HEI style 8mm wire set to match pin  style cap - $32 (Any of 8 colors)
Option of Black OEM style cap - $18
Optimized Connection Harness  (shortened) - $8 exchange
12 Volt power coil feed wire (61-64  or 65-69) - $8
OEM late 140HP right-side secondary  linkage offset bellcrank (used) $15
Shipping in the USA is  $18
Sales Tax applied in California  (8%)
Order  from:
Silicone Wire  Systems
3462 Kirkwood  Dr.
San Jose, CA  95117
E-mail for more info:  sethracer at aol.com
