<VV> [SCG] Corvair Condenser Removal Decal - Help, Please

[Bill Hubbell]

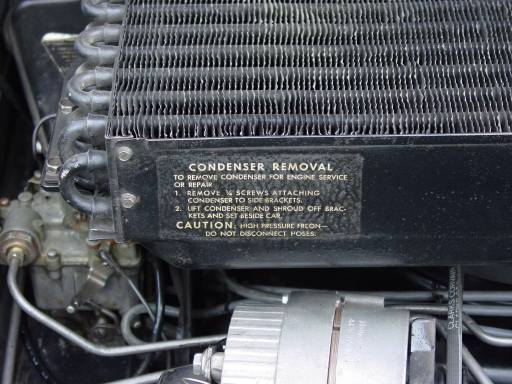

I decided to take a detailed look at my photos from past conventions, car
shows, etc, and I discovered THIS excellent example from the 2007 CORSA
convention in Detroit.

I don't know anything about the car, however, as I did not take any other
photos of it.  The decal appears correct and completely intact, but it is
installed in the wrong location, leading me to wonder if it is original,
NOS, or a reproduction.

I'd appreciate any information anybody could provide about this car as I
would like to contact the owner.

Thanks

Bill Hubbell
President, SCG

-----Original Message-----
From: SCG-list [mailto:scg-list-bounces at corvair.org] On Behalf Of Bill
Hubbell via SCG-list
Sent: Thursday, July 02, 2015 1:13 PM
To: Virtual Vairs; Stock Corvair Group
Subject: [SCG] Corvair Condenser Removal Decal - Help, Please

I am attempting to secure quality photos of original 61-65 Corvair AC
Condenser Removal decals.



This was GM part # 3815127 and was definitely used on all 1962-65 Corvair AC
Condensers, probably also used on 1961, although I cannot confirm that from
the '61 Assembly manual.



On the Early Model Corvairs the decal was attached to the right rear end of
the condenser, shown in the '64 Assembly manual Sheet B1.00 as item #4.



On the '65 Corvair it was the same part number but was attached to the top
of the cardboard shroud overlying the condenser, shown in the '65 assembly
manual Sheet B1 as item #11



If we can get a highly detailed photo of a complete original decal it should
be possible to have this reproduced. To the best of my knowledge the decal
has never been reproduced.



This is NOT the oil filter removal sticker, which is readily available both
as NOS and reproduction items, GM part # 3814124, shown as item #5 in the
'64 Assembly manual photo.



I have a few photos of examples of the original decal. Unfortunately, none
of these are complete - missing letters, lines, etc.



I have posted those photos and this request on the Corvair Center Forum at
this link:  http://corvaircenter.com/phorum/read.php?1,802962



This is currently my best accounting of the text of the decal:



                 CONDENSER REMOVAL
TO REMOVE CONDENSER FOR ENGINE SERVICE
OR REPAIR
1. REMOVE 1/4 SCREWS ATTACHING
CONDENSER TO SIDE BRACKETS
2. LIFT CONDENSER AND SHROUD OFF BRACKETS ???? AND SET BESIDE CAR
CAUTION: HIGH PRESSURE FREON
                DO NOT REMOVE HOSES





Thanks for whatever help you can give me.



Bill Hubbell,

President, Stock Corvair Group









This message was sent by the SCG-list mailing list, all copyrights are the
property of the writer, please attribute properly. For help,
mailto:scg-list-help at corvair.org This list sponsored by the Corvair Society
of America, http://www.corvair.org/ Post messages to: SCG-list at corvair.org
Change your options: http://www.vv.corvair.org/mailman/options/scg-list
