<VV> HEADLAMP GROUND WIRE

[ERICH MEYER]

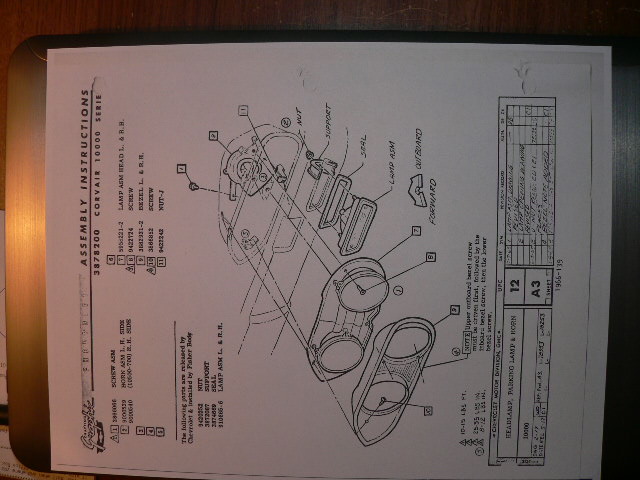

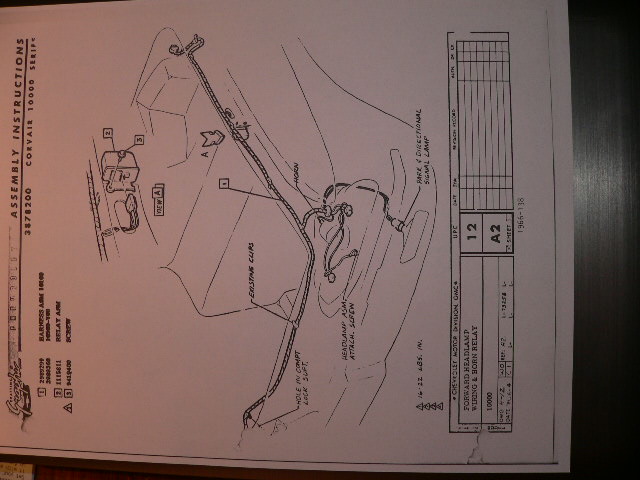

The headlamp ground wire is attached to the lamp assembly head as shown on the attached Assembly Manual UPC 12 Sheets A2 and A3.

Erich Meyer

Bayshore Corvair

Original Owner 66 2dr Monza 110 PG

-------------- next part --------------
A non-text attachment was scrubbed...
Name: asm 001.JPG
Type: image/jpeg
Size: 86555 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20170305/4cfd7872/attachment.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: asm 002.JPG
Type: image/jpeg
Size: 79554 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20170305/4cfd7872/attachment-0001.jpe>
