<VV> Late Power top circuit

Matt patiomatt at aol.com
Tue Oct 1 10:51:34 EDT 2019

Circuit breaker, if equipped , is usually next to the HRPT  on LM’s

Matt Nall
Sea Mtn., Or.
Sent from WinMail10

02:00 2019 Charles Lee via VirtualVairs wrote:
I believe there is a "bi-metal switch" in the engine compartment that heats up and "opens" stopping the top operation when it reaches an "obstacle" when the top is all the way up or down.

I think it is in the area between the battery and the deck lid hinge?

-------------- next part --------------
A non-text attachment was scrubbed...

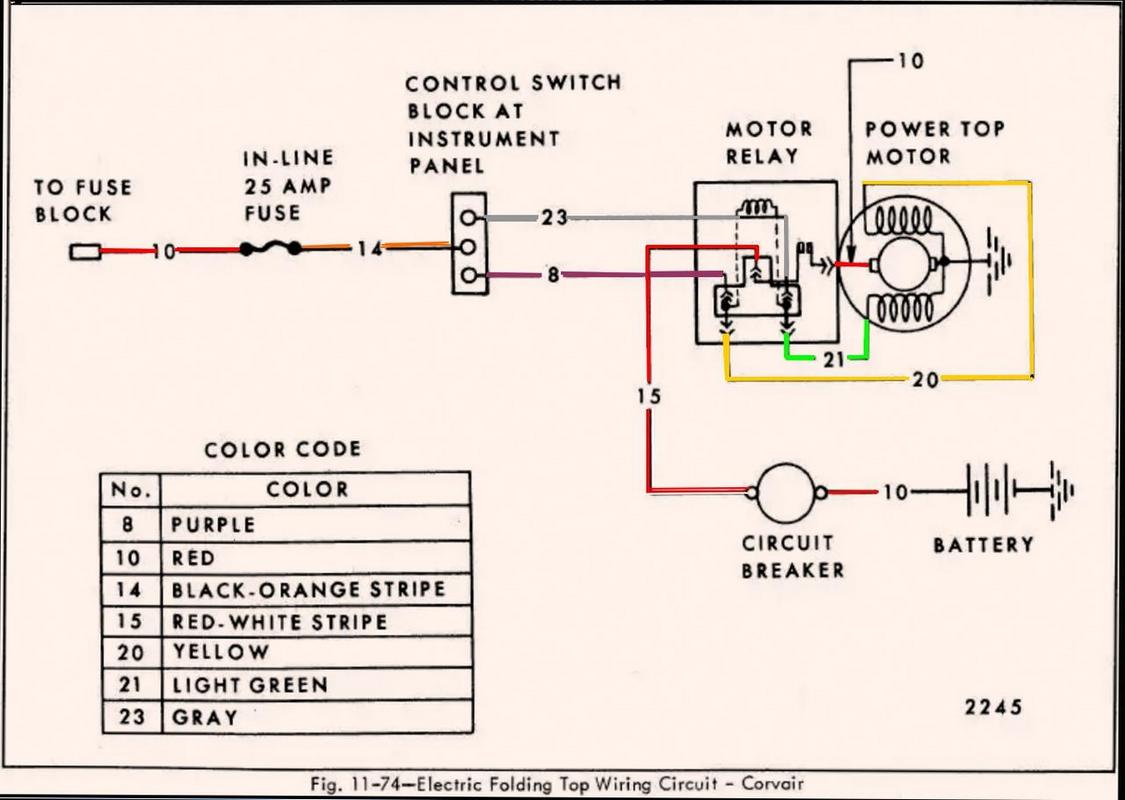

Name: LM-power-top-wiring.jpg
Type: image/jpeg
Size: 87141 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20191001/477ae612/attachment.jpg>
