<VV> FW: Wiring for Late Model Parking Lights

Jim Becker mr.jebecker at gmail.com
Mon Oct 7 15:37:49 EDT 2019


Yes, it is that simple, no extra wires, diodes, etc. required.  I don't know
if the empty slot is available for all years, but is was for every one I
have looked at.  The empty slot is hot with the tail lights.  The wire you
move is the one that goes to the parking lights.

Jim Becker

-----Original Message-----
From: Scott Trunkhill via VirtualVairs
Sent: Monday, October 07, 2019 2:02 PM
To: VirtualVairs at corvair.org
Subject: Re:  FW: Wiring for Late Model Parking Lights

Just move the purple wire on the headlight switch to the currently empty
spot.

Scott Trunkhill
Scott at trunkhill.com


> On Oct 7, 2019, at 1:44 PM, Jim via VirtualVairs
> <virtualvairs at corvair.org> wrote:
>
> The parking lights didn't illuminate with the headlights until '68.  See
> the

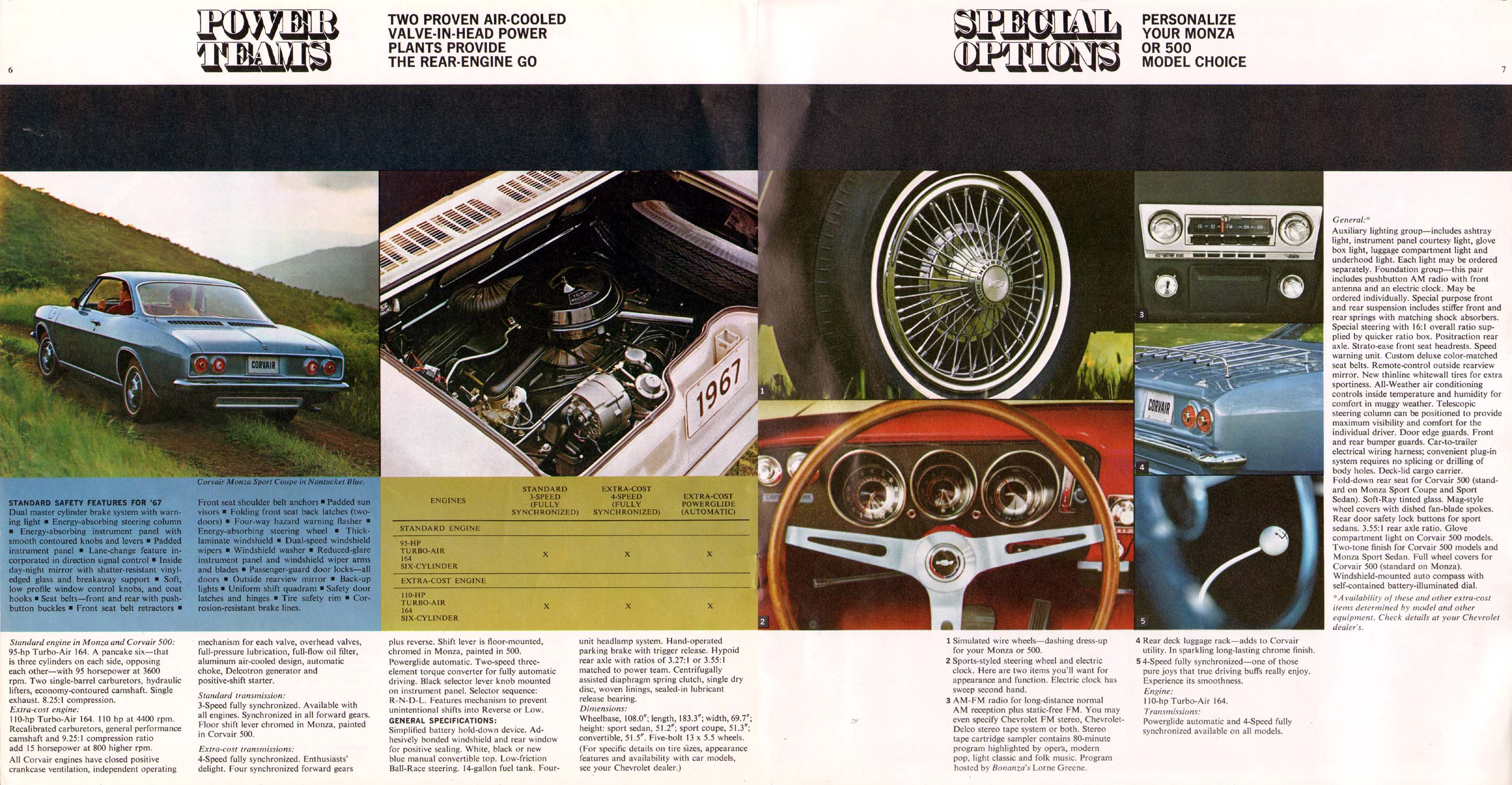

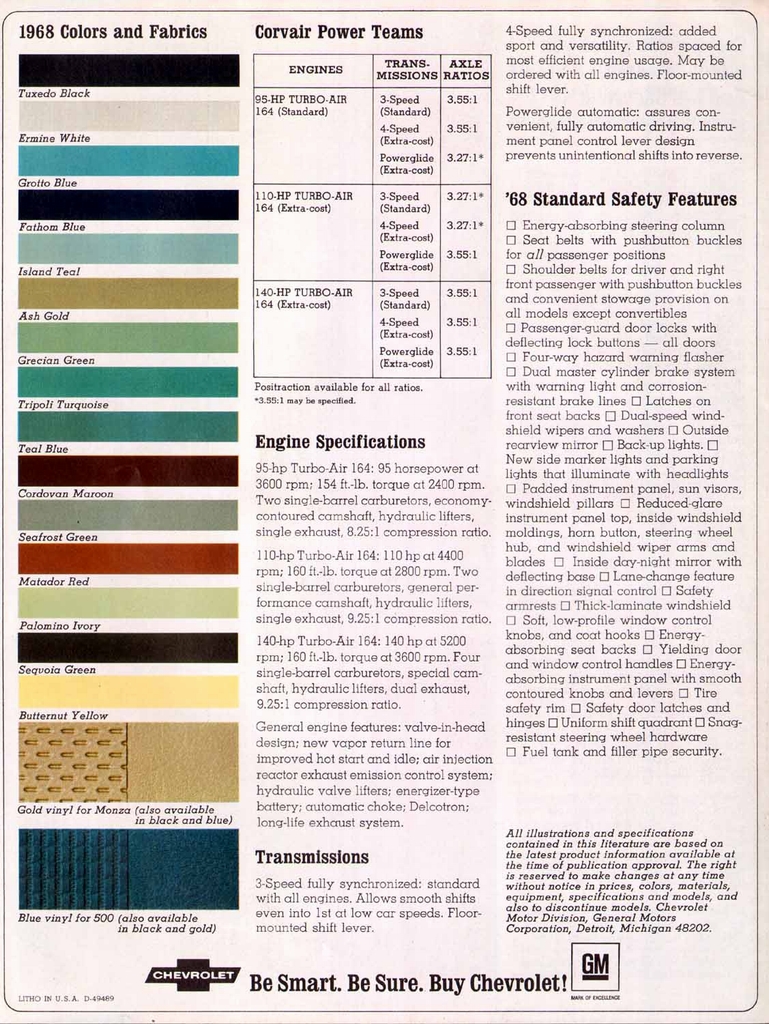

> attached pages from the '67 and '68 brochures.  Look under "Standard
> Safety
> Features."
>
> To wire them to come on with the headlights, you'd have to run wires from
> each of the parking light wires [not the turn signal wire] at the light
> unit
> under the cover in each corner of the trunk.  These wires would connect
> with
> the low beam headlight wires with diodes to prevent the parking light
> position of the light switch from turning on the headlights.
>
> For Matt:  I appreciate all of your suggestions that I find on VV.  I've
> learned a lot from your comments!
>
> Jim Bartasevich
>
>
> There is something wrong in a government where they who do the most have
> the
> least.  There is something wrong when honesty wears a rag, and rascality a
> robe; when the loving, the tender, eat a crust, while the infamous sit at
> banquets. - Robert G. Ingersoll
>
>
>
>
> -----Original Message-----
> From: VirtualVairs [mailto:virtualvairs-bounces at corvair.org] On Behalf Of
> Matt via VirtualVairs
> Sent: Monday, October 7, 2019 1:52 PM
> To: virtualvairs at corvair.org
> Subject: Re: <VV> Wiring for Late Model Parking Lights
>
> ’67  should….  Gov. mandate..
>
> Sent from Mail for Windows 10
>
> From: Michael Mauro via VirtualVairs
>
>
> My 67 coupe's parking lights do not illuminate when the headlights are
> on...
> I would like the parking lights to be "on" with the head lights... cannot
> a
> jumper be added, at the light switch, to accomplish what I am asking for?
>
> _______________________________________________
> This message was sent by the VirtualVairs mailing list, all copyrights are
> the property of the writer, please attribute properly. For help,
> mailto:vv-help at corvair.org This list sponsored by the Corvair Society of
> America, http://www.corvair.org/ Post messages to:
> VirtualVairs at corvair.org
> Change your options:
> http://www.vv.corvair.org/mailman/options/virtualvairs
> Archives: http://www.vv.corvair.org/archive.htm
> _______________________________________________
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: n_1968%20Chevrolet%20Corvair-06[1].jpg
> Type: image/jpeg
> Size: 704166 bytes
> Desc: not available
> URL:
> <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20191007/322be45a/attachment.jpg>
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: 1967%20Chevrolet%20Corvair-06-07[1].jpg
> Type: image/jpeg
> Size: 609729 bytes
> Desc: not available
> URL:
> <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20191007/322be45a/attachment-0001.jpg>
