<VV> Special wheels WAS convention pics- a favor to ask

kenpepke at juno.com kenpepke at juno.com
Wed Jun 23 22:26:58 EDT 2010


My partner and I did a lot of racing until he got sidelined with cancer.
He is OK now but not up to building racers anymore.  We started in
the figure 8 division and went on to late model stock cars.  The vast
majority of the hubs and drums I converted from 4 1/2 bolt circle to
4 3/4 were to enable Ford race cars to use the 8 inch wide Corvette
wheels.  The Ford center hubs were considerably smaller than the
center hole in the Corvette wheel.  The only wheel failures were due
to collisions.

Commercially made racing wheels always have oversize center holes
so they will fit a wider variety of hubs.  Broken wheels were all but
unheard of in the late model stock cars.  I took to moving the center
section of the racing wheels to adjust the scrub radius.  Even these
rewelded wheels did not break and they never had a close fit to the
hubs.

In steel wheels anyone can move the center section or even reverse
it.  This would be a good way to move stock Corvair wheels farther
out in the wheel house.  This works but makes an excessive scrub
radius resulting in greater steering effort.  It is also possible to split
Corvair wheels and weld in an insert to make the wheel wider.  This
will accommodate a wider tire and can bring the scrub radius back to
a reasonable dimension.

There was a time when I wanted to mate a Chevrolet 292 cu in
truck engine with a Pontiac OHC cylinder head to a Corvair transaxle
and race it as a late model.  The track officials were not about to
allow any rear engine cars in the field.

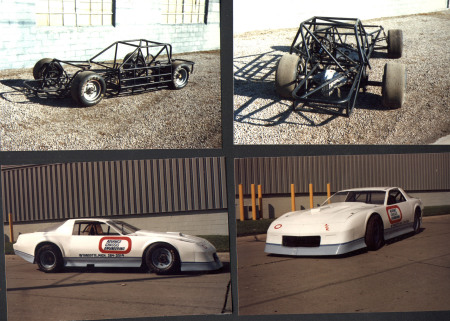

Not sure I know how to include a picture of one of my race cars but,
I will give it a try ... let me know ifit works.
Ken P


*******************
"BBRT" <chsadek at comcast.net> wrote:

Well, Ken, there is a reason to have a hub-centric wheel. Racing. Much
stronger. Street is up to you.

Chuck S
----- Original Message -----
From: <kenpepke at juno.com>
To: <virtualvairs at corvair.org>
Sent: Wednesday, June 23, 2010 2:15 PM
Subject: Re: <VV> Special wheels WAS convention pics- a favor to ask


>
> If one wishes to make a close fit there is no harm BUT, there is no
> security issue.
