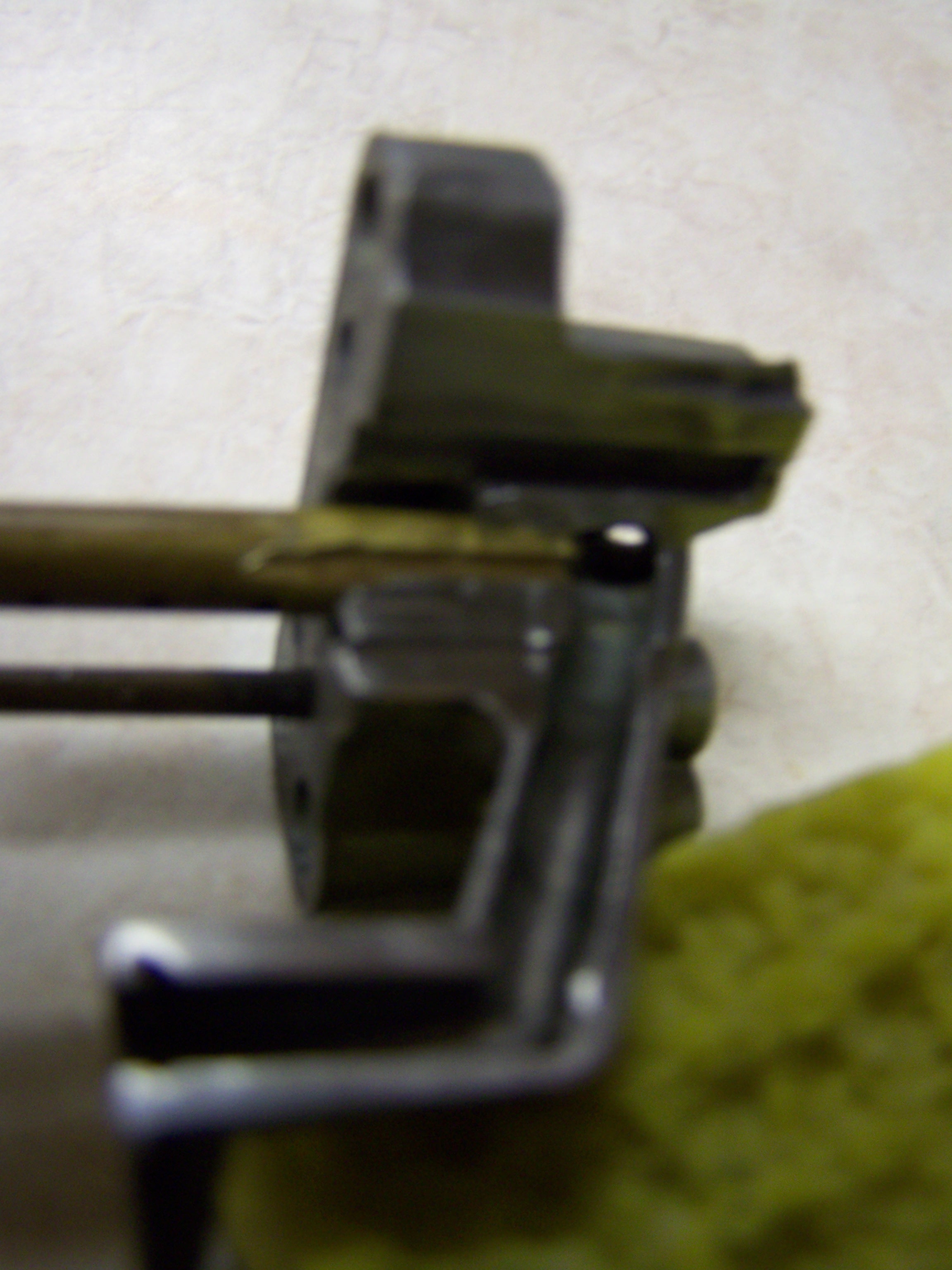

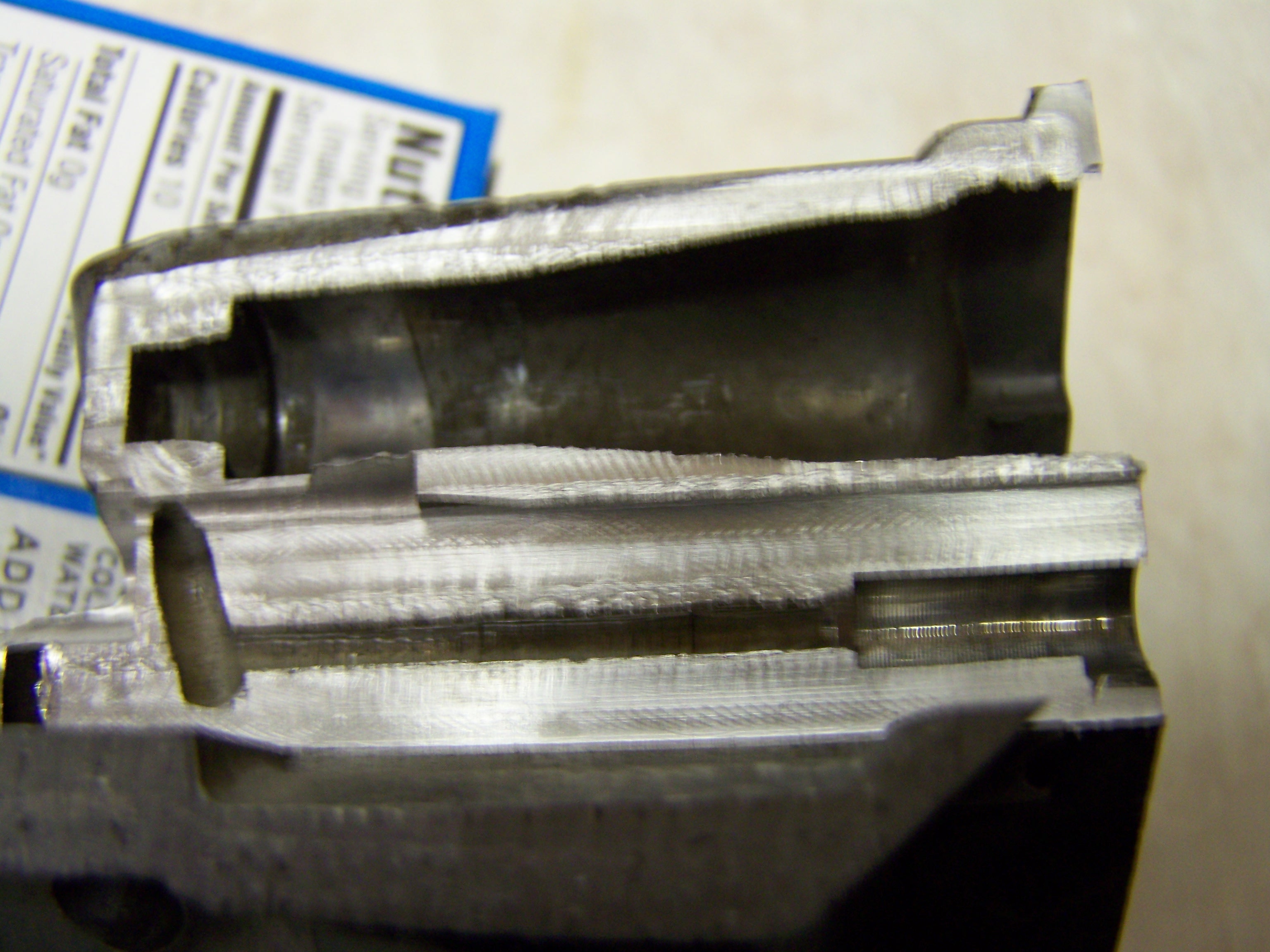

Today I was working on a couple carbs for my sons 69   #23 and had a accel pump cup stuck in the bore and refused to come out. It ripped apart when I had to pry the pump out and stretched the spring until it was about straight. This is the worst one I have run into. Anyway I wanted to see what that area looked like so I milled that area in half and thought you guys might like to see some pics. I also milled a cluster in half to get a better look inside it.
Russ Davis
Blue Chip Machine
CORSA
CVCC
