<VV> 66 accelerator linkage

Mark Durham 62vair at gmail.com
Mon Oct 17 12:03:53 EDT 2011


Matt, correct me if I am wrong, I have an early, but I think that
bracket also has a stop built into it so it cannot get into the over
center and locked position. O.B., take another look, there should be a
flange or lip the arm rests on that you must pull the throttle rod off
of to engage the throttle arm on the cross shaft, but it never should
go overcenter and lock. Mark Durham

On Mon, Oct 17, 2011 at 7:39 AM, Matt Nall <patiomatt at aol.com> wrote:
>
>
>
> Need some help here, throttle response slow to speed up, peddle has to be moved
> about 1/4 before
> rpm's come up,
> I first thought that the piviot under the rear seat was rusted out , but that
> was not the problem,
> also you cannot operate the linkage from the engine compartment, the throttle
> rod will not pull up
> to open the carbs....

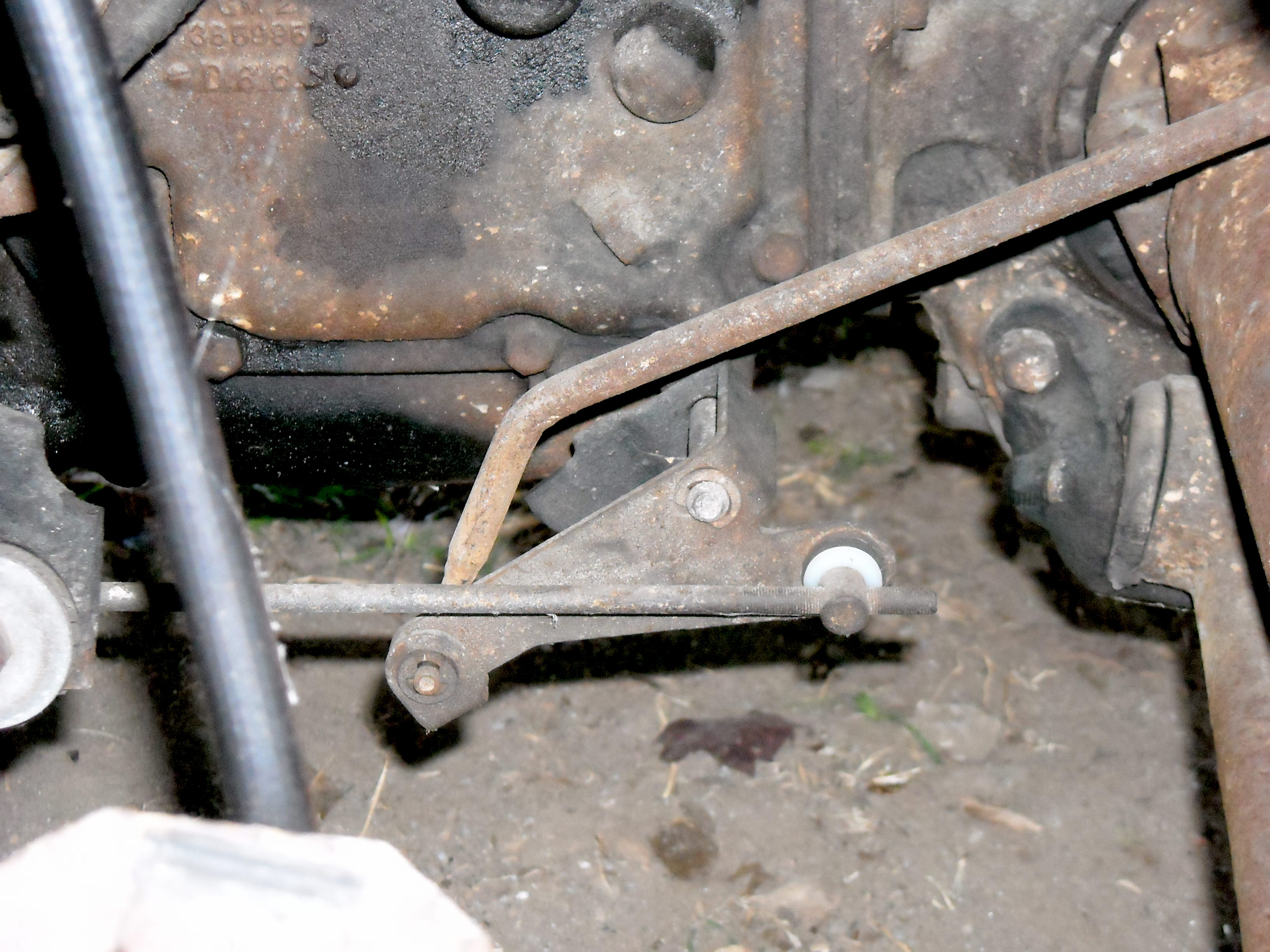

> I looked at the linkage on the transmission and found that it did not appear to
> be correct, rod
> linkage and piviot are in line, no way it can be correct, photo attached........
>
> O. B. Stewart
> Music City Corvair Club
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: bill's convert.JPG
> Type: image/jpeg
> Size: 1043524 bytes
> Desc: not available
> Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20111016/deef7b93/attachment.jpe
>
>
> ==========================================================================================
>
> Time to replace the plastic bushings... and re-adjust.
>
>
>
>
> Right now.. the swivel on the "throttle rod"  needs to be "shortened"
>
>
> to get the bellcrank over center.
>
>
>
>
>
> Matt Nall
> Charleston, Oregon
> http://tinyurl.com/The-Patio
> http://tinyurl.com/Matts-Tech-Pages
>
>
>
>
>
>
>
>
>
>
>
