<VV> Fw: solid fly wheel ad nauseum

[Mike McCrae]

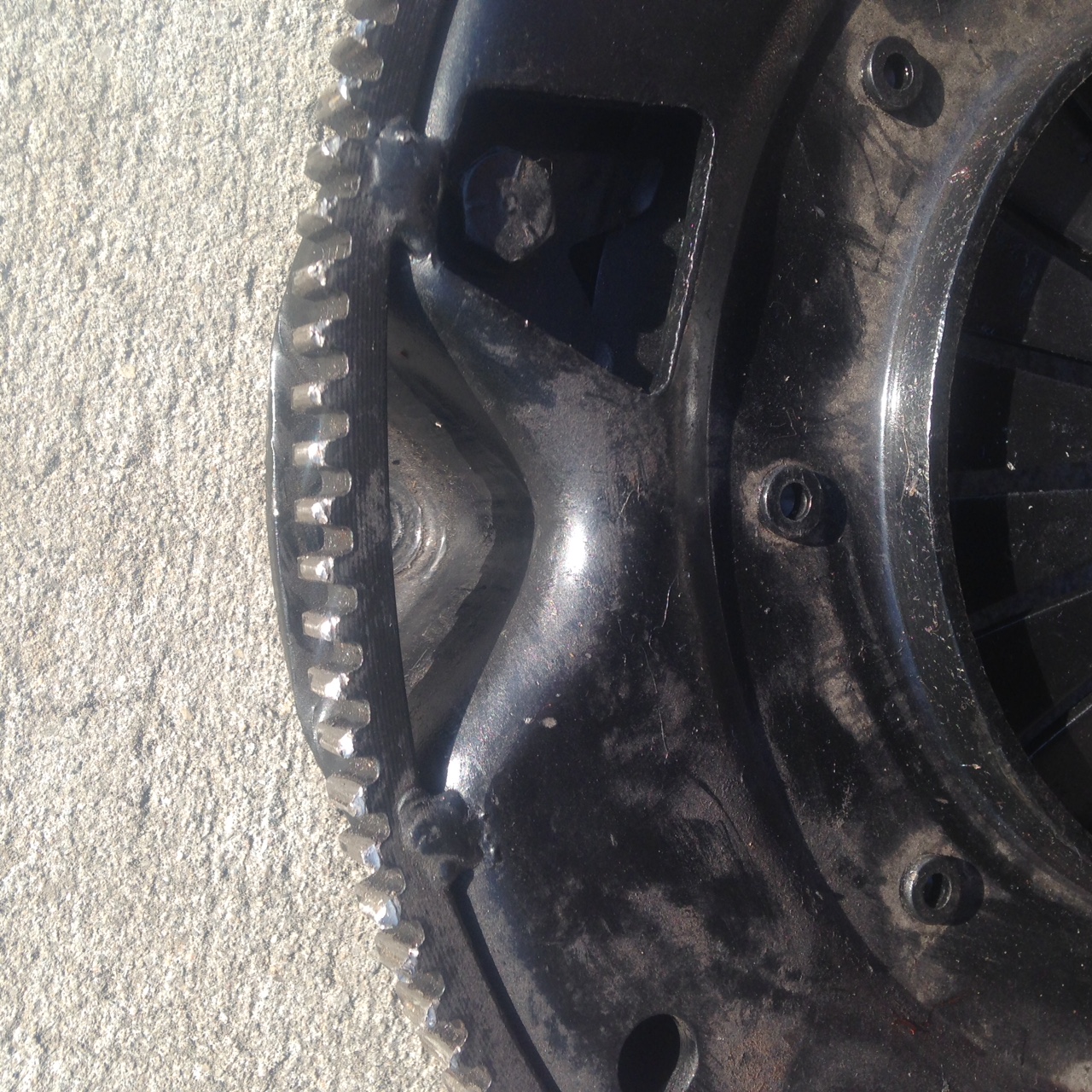

Found the REAL problem....someone dropped this pressure plate once
...probably during removal, and flattened the
ring gear where it arched across the support....thus causing the gears to
strip, and also acting as a cam to break the starter nose.
It's not real noticeable at first, but look hard and you can see the
depression. The gears also show the most stripping here.

check those ring gears!

Mike


















Sent from my iPhone
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_2231.JPG
Type: image/jpeg
Size: 721732 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20150415/2ab427ca/attachment.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_2230.JPG
Type: image/jpeg
Size: 688010 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20150415/2ab427ca/attachment-0001.jpe>
