<VV> 1965 Monza Battery Lead Install?

Hugo Miller hugo at aruncoaches.co.uk
Mon Dec 10 17:08:28 EST 2018


I thought he just connected both terminals to ground?


On 2018-12-10 15:04, Jim via VirtualVairs wrote:
> On the late models, there is a light gauge wire to the body frame
> rail to
> provide a ground for the accessories.  This is combined with the
> battery
> ground cable.
>

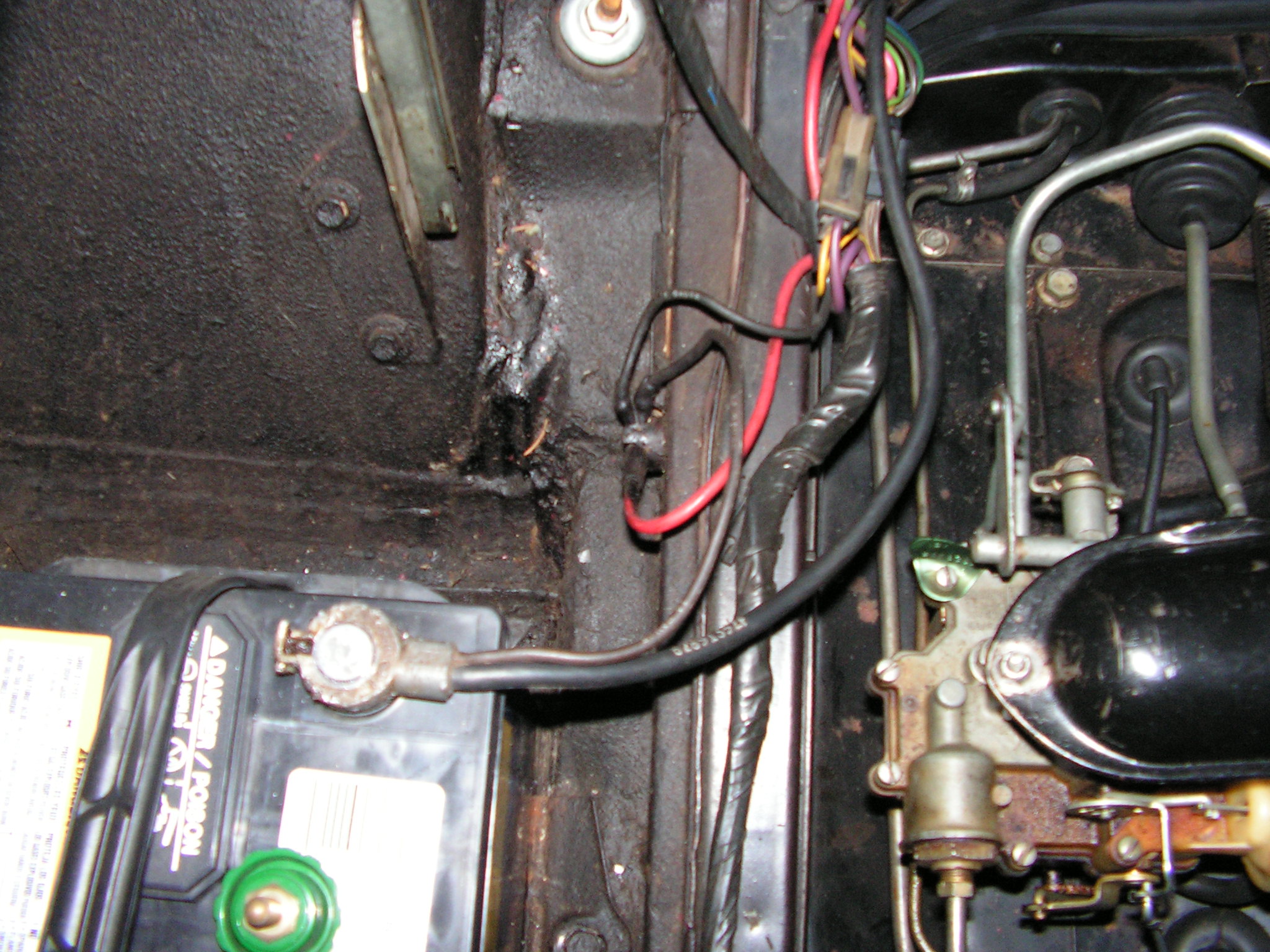

> For the positive side, the heavy wire goes directly to the starter,
> but
> there is a smaller wire coming off of the positive terminal of the
> battery
> cable that goes down to a red plastic electrical connector pushed
> into the
> frame rail.  This is a junction to provide power to the rest of the
> car. See
> the attached photo.  Is this what melted?  If so, the plastic
> connector
> probably broke which allowed the battery to short there.  See Clark's
> catalog page 99 for C6802 for the connector and C6827 for the screw.
>
> Jim Bartasevich
>
> We think too much and feel too little. - Charles Chaplin
>
>
> -----Original Message-----
> From: VirtualVairs [mailto:virtualvairs-bounces at corvair.org] On
> Behalf Of
> Hugo Miller via VirtualVairs
> Sent: Monday, December 10, 2018 4:17 AM
> To: virtualvairs at corvair.org
> Subject: Re: <VV> 1965 Monza Battery Lead Install?
>
> I don't know what book you are looking at! Ultimately, the positive
> will go
> to ground, but it has to go through something else first (ignition
> coil,
> headlights, whatever) to provide some resistance and only allow a
> small
> current through. What you are doing is creating a dead short with
> practically no resistance. That will warm things up dramatically! I
> have
> even seen batteries explode under such conditions!
>
>
> On 2018-12-10 05:24, Arlette Pat & Carl Kelsen via VirtualVairs
> wrote:
>> G'day everyone,
>> Today I connected a battery to our '65 Monza to start checking all
>> the
>> various electrical systems. As soon I connect the positive lead,
>> which
>> has a light gauge lead to ground / earth this lead over heated
>> stated
>> smoking and melting. Of I immediately disconnected it. No apparent
>> damage apart from the ground wire itself.
>>
>> Every book I have shows a ground / earth wire connected to the
>> positive lead and the Negative has one also, but my Motor
>> Electrician
>> tells me this can not be right.
>>
>> Can anyone tell me what I am doing wrong?
>> Regards from Australia
>> Carl Kelsen
>>  _______________________________________________
>> This message was sent by the VirtualVairs mailing list, all
>> copyrights
>> are the property of the writer, please attribute properly. For help,
>> mailto:vv-help at corvair.org This list sponsored by the Corvair
>> Society
>> of America, http://www.corvair.org/ Post messages to:
>> VirtualVairs at corvair.org Change your options:
>> http://www.vv.corvair.org/mailman/options/virtualvairs
>> Archives: http://www.vv.corvair.org/archive.htm
>>  _______________________________________________
>
>  _______________________________________________
> This message was sent by the VirtualVairs mailing list, all
> copyrights are
> the property of the writer, please attribute properly. For help,
> mailto:vv-help at corvair.org This list sponsored by the Corvair Society
> of
> America, http://www.corvair.org/ Post messages to:
> VirtualVairs at corvair.org
> Change your options:
> http://www.vv.corvair.org/mailman/options/virtualvairs
> Archives: http://www.vv.corvair.org/archive.htm
>  _______________________________________________
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: PICT0287.JPG
> Type: image/jpeg
> Size: 737240 bytes
> Desc: not available
> URL:
>
> <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20181210/bc045e73/attachment.jpe>
