<VV> Fw: I missed the 25 amp in line fuse. i dont even know where it is. This should help with finding the fault.

Hugo Miller hugo at aruncoaches.co.uk
Sat Jul 6 10:05:18 EDT 2019


If there IS a fuse, and if you DO find it, and if it HAS blown, bear in
mind there may be a reason why ;)

On 2019-07-06 12:42, Michael Kovacs via VirtualVairs wrote:
>  I was helping Mark with the trouble to the power top. We had checked
> and found there was no power going to the up / down down switch.
> Could
> it be the 25 A in line fuse?
>
>  The circuit breaker works and the relay was replaced with one of
> mine. There is Power to the motor from the circuit breaker.
>

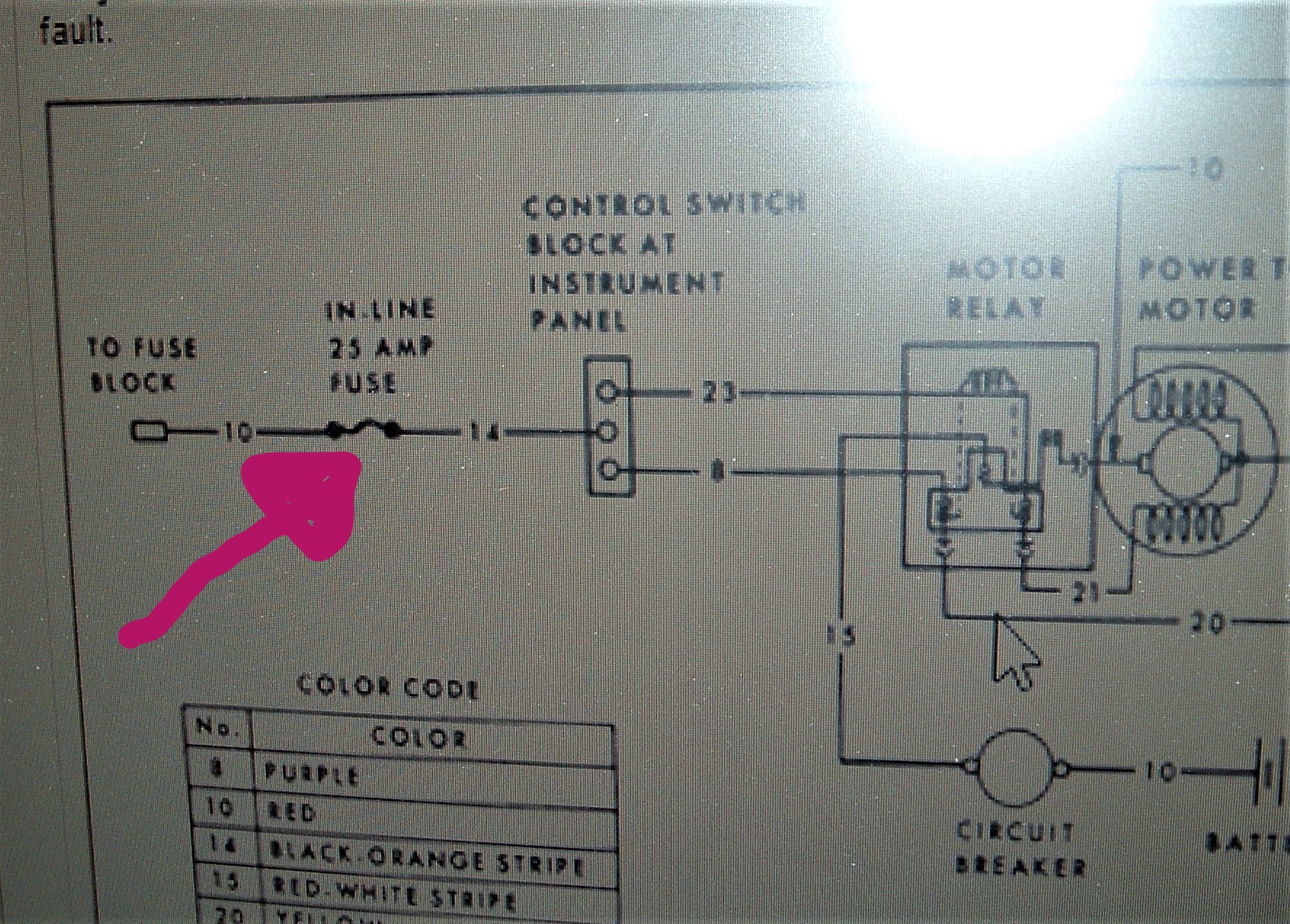

> Afer I dug in the internet I found the schematic for a 66.  I did not
> see any 25 amp ''in line fuse'' in the car.  Where is it? Is it
> behind
> the dashboard or buried in the tunnel?
>
>
>
