<VV> Dome light

[William Hubbell]

Convertibles don’t have dome lights; they have a pair of under-dash “courtesy” lights instead.

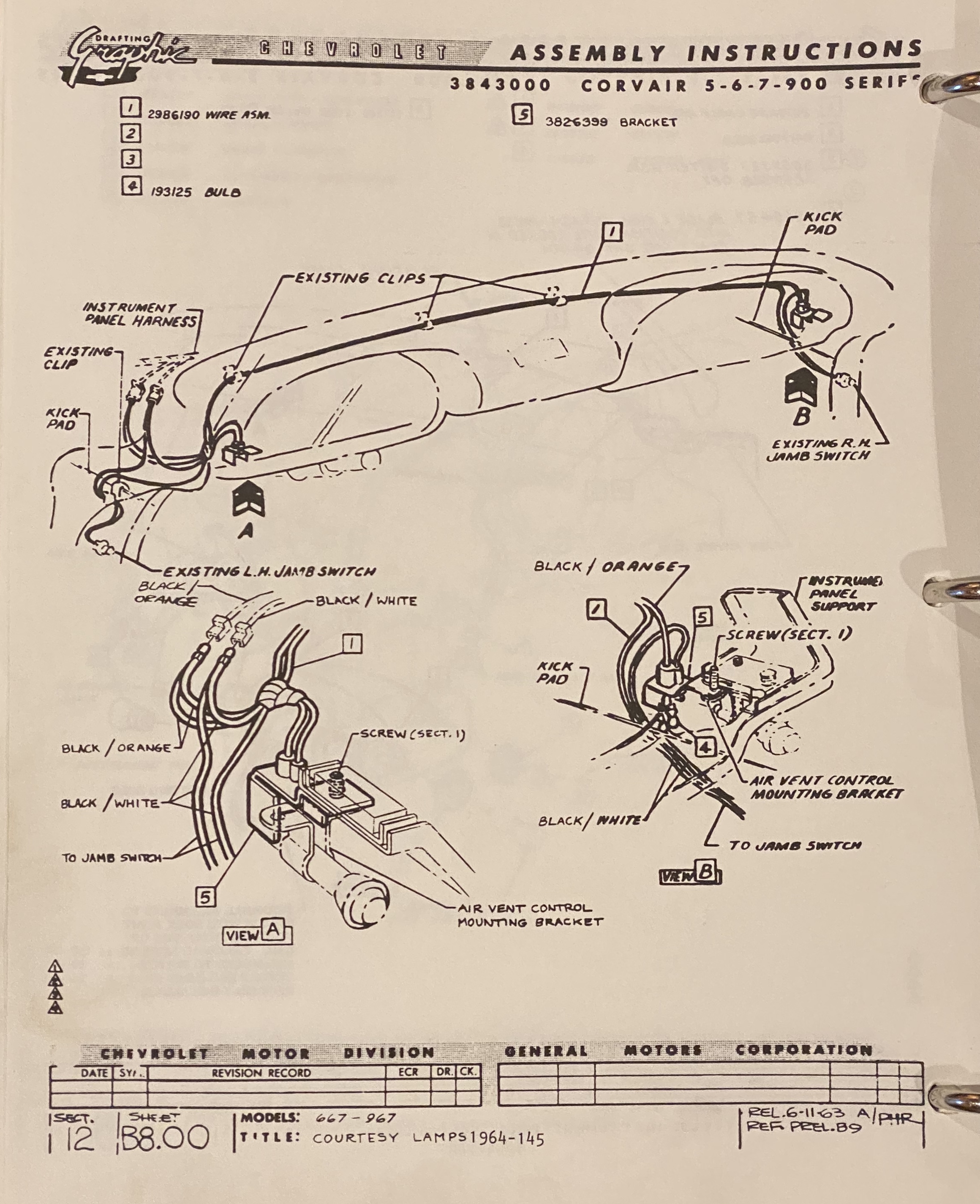

Here is the sheet from the 1964 assembly manual

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image0.jpeg
Type: image/jpeg
Size: 1646734 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20200311/44e6c8c0/attachment.jpeg>
-------------- next part --------------


Bill

> On Mar 10, 2020, at 11:28 PM, Hugo Miller via VirtualVairs <virtualvairs at corvair.org> wrote:
>

Can anybody tell me where the dome light lives on a '64 convertible? I found a couple of black & white wires heading in the direction of the door switch, but when I grounded one of them in the hope that it might shed some light on the subject, all I succeeded doing was blowing the fuse. Who decided to put the fuse box in such a stupid place? They could have put it in the trunk on the other side of the panel it is screwed to, then you wouldn't have to be a contortionist to change a fuse.
