<VV> Powerglide Kickdown

[William Hubbell]

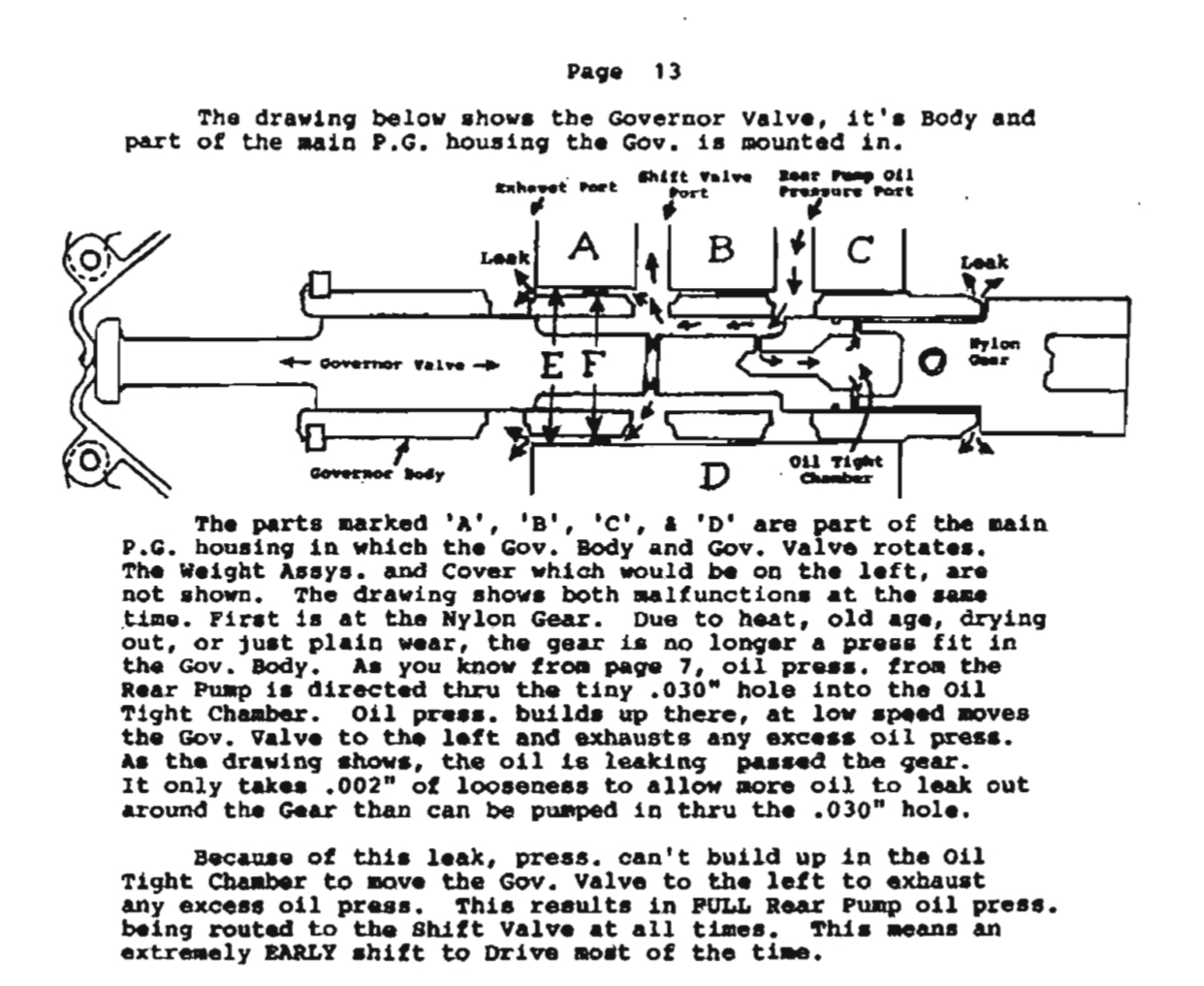

I’ve also mentioned that a defective Governor drive gear could also be your problem.  Attached is a detailed explanation written by the late Bob Ballew, probably
the greatest Corvair Powerglide technical expert ever.

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image0.jpeg
Type: image/jpeg
Size: 488760 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20220805/1125c1a3/attachment.jpeg>
-------------- next part --------------


Bill

On Aug 5, 2022, at 5:41 AM, William Hubbell <whubbell at umich.edu> wrote:

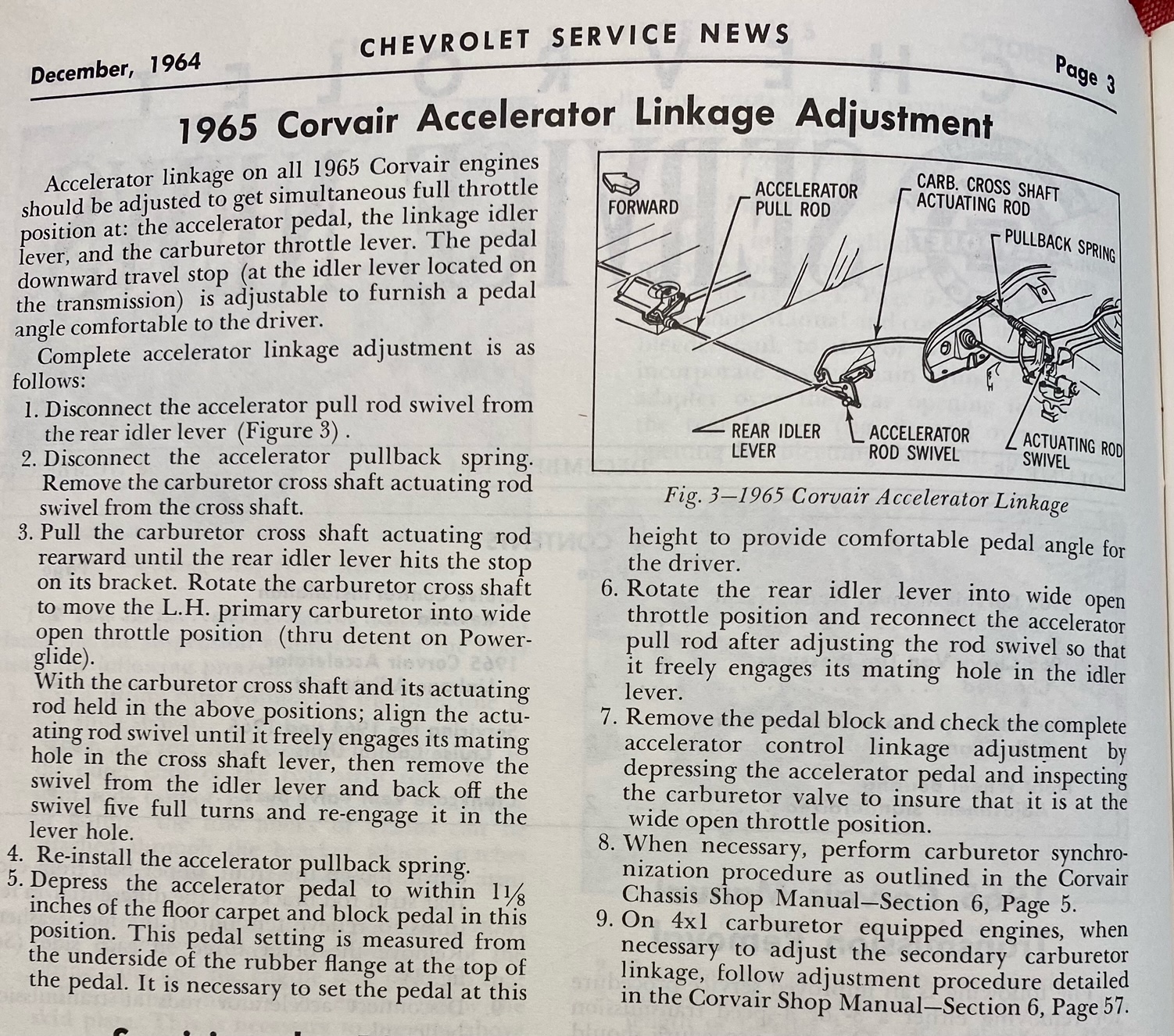

‘65 Shop Manual instructions are incorrect - a correction was written in Chevrolet Service News and repeated in ‘66 Shop Manual Supplement.  The correct procedure is essentially the same as you have posted for Early Models.

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image0.jpeg
Type: image/jpeg
Size: 954920 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20220805/1125c1a3/attachment-0001.jpeg>
-------------- next part --------------


Bill

On Aug 5, 2022, at 1:02 AM, gw via VirtualVairs <virtualvairs at corvair.org> wrote:

Just did this on. ‘64 PC this morning. Process was in the assembly manual / engine section. Maybe different for LM?

Here is the snapshot. Realize it is for 1964. Maybe someone can verify ‘65 difference(s).

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image0.jpeg
Type: image/jpeg
Size: 1421575 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20220804/ccdc6923/attachment.jpeg>
-------------- next part --------------


Thanks,

Greg

> On Aug 4, 2022, at 1:18 PM, Juno Mail via VirtualVairs <virtualvairs at corvair.org> wrote:
>
> I am working on a 1965 Powerglide convertible.  After the trans was redone by the Ranch, the car does not have a kickdown gear regardless of throttle position.  The Ranch tells me the valve adjustment (using the special tool) inside the trans is correct.  I believe them.  Under light throttle it shifts from low to high at about 15-18 MPH.  Any tips or davice about how to adjust the rod from the gas pedal to the lever on the side of the trans?  Any assistance greatly apricated.  Thanks.
