<VV> 64 leaf spring ...

[Chris & Bill Strickland]

The broken bolt/nut/whatever is one (more) reason *not* to use a 64
differential -- much easier to remove the spring from the car if one has
only the other bolt to disconnect, and my one, first, and, last
experience with the bolt breaking  was without the "correct" diff and it
was fairly untraumatic as the spring just swung down behind the car and
followed along making a rather noticeable racket until I could get
pulled over.  Since then, I've only used high grade hardware to hold the
springs up, and inspect them routinely. I also carry spares.  Knock on
wood ...

And, if/when you break a bolt, it will be on a day like Tony recently
described for his flat tire, but it will be at night.
And, ironically, Tony's post on this was #11 in my Digest.

They are susceptible to physical damage, so frequent inspection for
unforseen problems is highly recommended.  And, if the bushings are
worn, the bolts can wear against the spring.  I'll see if I can find
some pics of abused bolts to attach.

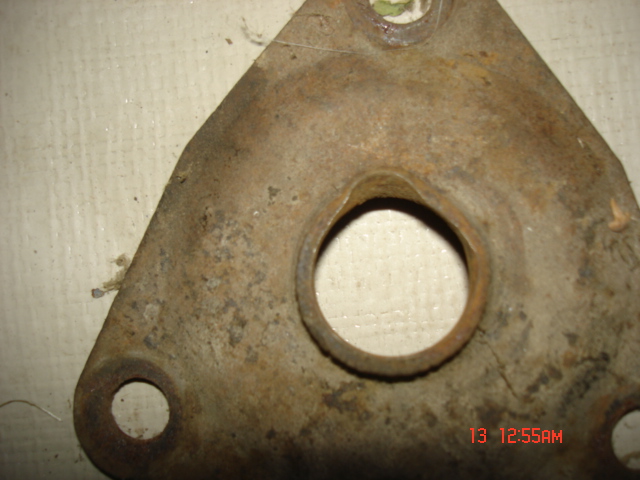

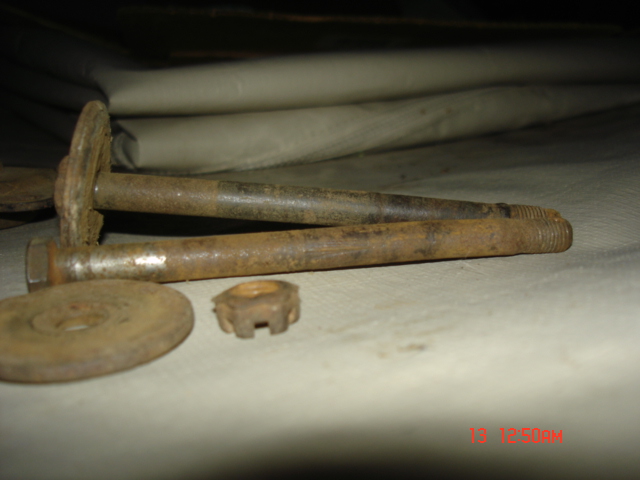

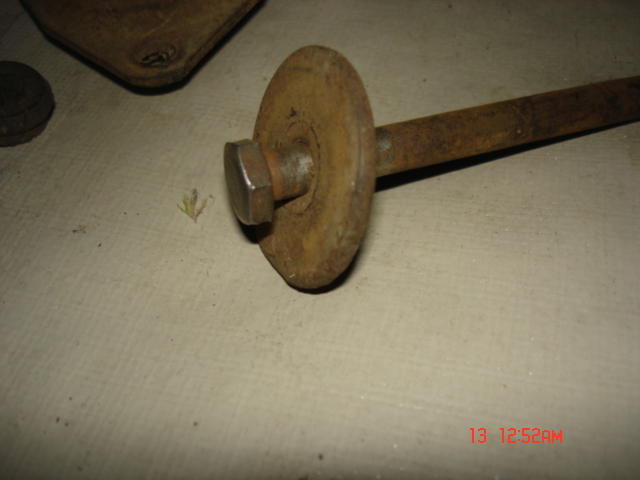

The one of the bolt bent into a Z shape eludes me, but note the wear on
these, esp the washer under the head of the bolt, and the top side of
the castelated nut.

Bill Strickland
-------------- next part --------------
A non-text attachment was scrubbed...
Name: DSC01060.JPG
Type: image/jpeg
Size: 124400 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20091113/ed3f054b/attachment.jpe
-------------- next part --------------
A non-text attachment was scrubbed...
Name: DSC01062.JPG
Type: image/jpeg
Size: 135310 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20091113/ed3f054b/attachment-0001.jpe
-------------- next part --------------
A non-text attachment was scrubbed...
Name: DSC01069.JPG
Type: image/jpeg
Size: 139315 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20091113/ed3f054b/attachment-0002.jpe
